NI DAQ Device Custom Cables, Replacement Connectors, and Screws

Overview

If you are trying to create a custom DAQ cable, create a custom fixture or breakout, modify an existing cable, repair or replace the connector on your cable or printed circuit board (PCB), or require replacement jackscrews or jacksocket fasteners, this document provides descriptions, part numbers, and vendor information to achieve these tasks.

Contents

Using this DAQ Cable and Accessory Guide

This guide is intended to cover connectors, backshells, screws and washers designed for use with NI DAQ devices. It does not explicitly cover other NI product families such as HSDIO, Switches, C Series, or reconfigurable I/O (formerly R Series), although some models may use similar or the same parts. It also does not cover legacy or End of Life (EOL) parts or products.



Mating Connectors and Backshells with Part Numbers

These connectors or receptors are found on most NI DAQ devices. Refer to the Glossary for any questions regarding connector terminology.

  • 0.050 - Pins on this D-Type connector are spaced 0.050 inches apart. This connector is commonly found on NI 60xxE, 61xx, 65xx, 66xx, and 67xx DAQ devices.
  • 0.8 mm - Pins on this connector are spaced 0.8 mm apart. This connector is commonly found on NI 62xx and 63xx DAQ devices.

Check out the Popular NI DAQ Models and their Connectors section, the DAQ Accessory Guide, the DAQ Cable Guide, or the product manual for your product for more information on what connector is featured on your device. Additionally, NI Dimensional Drawings contains drawings for many connectors and the devices, modules, cables and accessories they are used on.

Notes:

  • In the following table connector pins are referred to as position formally, but may also be referred to as 37-pin, 50-pin, 68-pin, and 100-pin.
  • When using board mount connectors with NI cables, NI recommends mounting the connector to a panel, enclosure, or similar mechanical support to ensure proper strain relief.
Identify the part and part number of the board-mount, cable connectors and backshells used on NI DAQ cables and accessories.
Part DescriptionNI Orderable Part NumberManufacturer Part Number
 0.8 mm VHDCI Board-Mount Connectors
68-Position Right Angle Single Stack PCB-Mount VHDCI (Receptacle)785633-01Honda HDRA-EC68LFDT2+
68-Position Right Angle Dual Stack PCB-Mount VHDCI (Receptacle)785634-01Honda HDRA-E68W1LFDT1EA+
68-Position Vertical Single Stack PCB-Mount VHDCI (Receptacle)785753-01Honda HDRA-EC68FDT+
50-Position Right Angle PCB-Mount VHDCI (Receptacle)N/ATE Connectivity 5787096-1
 0.8 mm VHDCI Cable Connectors
68-Position Offset IDC Cable Connector (Plug) (SHC68-*)N/AMolex 71425-300111
50-Position Offset IDC Cable Connector (Plug)N/ATE Connectivity 5787131-1
 68-Position 0.050 D-Type Board-Mount Connectors
68-Position Right Angle PCB-Mount Connector (Male)777600-01TE Connectivity 2-5174225-5
68-Position Vertical PCB-Mount Connector (Male)777601-01TE Connectivity 2-5174339-5
 68-Position 0.050 D-Type Cable Connectors
68-Position IDC-Type Connector (Female)N/ATE Connectivity 5749699-7
Backshell for 68-Position IDC-Type Connector (Female)N/ATE Connectivity 5749195-2
NI 68-Position Kit including Solder-Cup Connector (Female) and Backshell, and Jackscrews776832-01N/A. NI kit contains the Honda solder-cup connector and backshell, below.
68-Position Solder-Cup Connector (Female)N/AHonda PCS-E68FS+
Backshell for 68-Position Solder-Cup Connector (Female), and JackscrewsN/AHonda PCS-E68LKAU2N
 100-Position 0.050 D-Type Board-Mount Connectors
100-Position Right Angle PCB-Mount Connector (Female)777778-01TE Connectivity 5787169-9
100-Position Vertical PCB-Mount Connector (Female)777779-01TE Connectivity 5749070-9
 100-Position 0.050 D-Type Cable Connectors
100-Position IDC-Type Connector (Male)N/ATE Connectivity 5749111-8
Backshell for 100-Position IDC-Type Connector (Male), includes JackscrewsN/ATE Connectivity 5749081-1
 37-Position D-Sub Cable Connectors
NI 37-Position Kit including Solder-Cup Connector (Female) and Backshell, no Jackscrews779184-01N/A
Backshell for 37-Position Solder-Cup Connector (Female).  Is a 62-position backshell that also fits 37-position Solder-Cup connector.N/ATE Connectivity 5206478-4
37-Position Solder-Cup Connector (Male), 5 AmpN/AL-com SD37P
37-Position Solder-Cup Connector (Male), 3 AmpN/ASurplus Electronic Technology 010337-00002230


1This product is currently in the maintenance phase. For more information see NI Hardware Product Life Cycle Policies.

Jackscrews, Jacksockets, and Washers with Part Numbers

To provide a more secure cable attachment, NI now uses jackscrews to secure 68-pin cables to DAQ devices and accessories. Each side of the cable connector contains two jackscrews that tighten into jacksockets located on all DAQ devices and accessories. To make this conversion, use the Jacksocket Kit for Connecting Screw Latching Cables in the following table. Other replacement jackscrew, jacksocket, screwlock, thumbscrew and washer information is also provided.

Identify the part, part number, size and threading of the screws and washers used on NI DAQ cables and accessories.
Part DescriptionNI Orderable Part NumberManufacturer Part Number
Latching Cable to Jackscrew Conversion Kit
(1) 4 Piece Jacksocket Kit for Connecting Screw Latching CablesN/AN/A
(10) 4 Piece Jacksocket Kits for Connecting Screw Latching CablesN/AN/A
Replacement Screws and Washers
68-Position SCSI-II Jackscrew, Molded Head, Overmold; 2-56 ThreadsN/ACustom
68-Position SCSI-II Jacksocket, M2.5 Screw, .348" Length, .148" Head LengthN/ACustom
68-Position VHDCI Connector Screwlock, Board Mount, Nylon PatchedN/ATE Connectivity 787004-3
100-Position SCSI-II Jackscrew, Molded Head, Overmold, 2-56 ThreadsN/ACustom
100-Position SCSI-II Jacksocket, 2-56 ThreadsN/AN/A
68 or 100-Position SCSI Connector Washers, M2.5, Flat, .030 Thick, SSN/AN/A
37-Position D-Sub Standoff/Screwlock, 4-40 Threads, 3/16" Hex Head, 3/16" Head Length, 5/16" Thread Length, 0.13" Min Female Depth, SS, Threads Fully Nylon PatchedN/ACustom
37-Position Thumbscrew, 4-40 threads, 46.9mm Long, For High Voltage CablesN/ACustom





Ordering Information

For more information on any of the listed NI orderable parts, please visit http://www.ni.com/contact-us/ to contact an NI representative. NI orderable parts listed in this guide without a product page can still be purchased by contacting NI.

For parts with a manufacturer part number, please contact the manufacturer or their vendors for further information about the product and purchasing.  Manufacturer part numbers represent functionally equivalent replacements that are currently available from the specified manufacturer. This may differ from the part found on your device, module, cable or accessory as NI continuously revises and improves their products.

Some parts are custom made for NI or are common parts in industry, and do not have orderable part numbers. Please use the specifications provided to find an appropriate part.

Connectors Found on Popular NI DAQ Products

Below is a list of the connectors referenced in this guide that are found on the most popular NI DAQ products. This is not intended to be a complete nor comprehensive list of all NI DAQ products. Similar cables and connectors may be used with other NI products, and are not included here. You should first check your device's manual, or reference the NI DAQ Cable and Accessory Compatibility Guide to ensure you are referencing the right connector for your device or module.

Note: These tables do not indicate compatibility between devices, modules, cables and accessories. Although they may share the same connector type, different wire mappings are used in different configurations.

Use this table to quickly identify connector types found on many NI DAQ devices and modules. Click to open the compatibility guide.
Devices/ModulesConnector Types
X Series (63xx)68-position 0.8mm VHDCI
M Series (62xx)68-position 0.8mm VHDCI
68-position 0.050 D-Type
37-position D-Sub
S Series (61xx)68-position 0.8mm VHDCI
68-position 0.050 D-Type
37-position D-Sub
E Series (60xxE)100-position 0.050 D-Type
68-position 0.8mm VHDCI
68-position 0.050 D-Type
Analog Output (67xx)68-position 0.8mm VHDCI
68-position 0.050 D-Type
Counter/Timer (66xx)100-position 0.050 D-Type
68-position 0.050 D-Type
Digital I/O
(650x, 651x, 652x)
100-position 0.050 D-Type
37-position D-Sub



Use this table to quickly identify connector types found on many NI DAQ cables. Click the link to open the cable guide or dimensional drawing, if available.
CablesConnector Types
SHC68-68-EPM1
SH68‑C68‑S1
SHC68-681
RC68-681
68-position 0.8mm VHDCI
68-position 0.050 D-Type
SH68‑68‑EPM
SH68‑68R1‑EP
SH68-68-D1
R68-68
68-position 0.050 D-Type
DB37M‑DB37F‑EP
SH37F‑37M
SH37F-P-4
37-position D-Sub
SH100M-100M Flex2100-position 0.050 D-Type

1These cables include the 68-pin .8mm VHDCI connector on the end to be connected to the module or device and the 68-pin 0.050 D-Type connector on the end to be connected to the accessory.

2 The SH100M-100M Flex cable was formerly named SH100-100-F.

Use this table to quickly identify connector types found on many NI DAQ terminal and connector blocks. Click the link to open the accessory guide, if available.
AccessoriesConnector Types

SCB-68A
SCB-68

CB‑68LP
CB-68LPR
TBX-68

BNC-2110
BNC-2111
BNC-2115
BNC-2120
BNC-2121
BNC-2090A
BNC-2090

68-position 0.050 D-Type
CB‑37FV
CB‑37FH
CB‑37F‑LP
CB‑37F‑HVD
37-position D-Sub
SCB-100
SCB-100A
100-position 0.050 D-Type



Glossary of Terms Used

  • 0.050 D‑Type - Industry standard SCSI connector standard featuring 0.050 pin spacing that is used in 50, 68 and 100-position DAQ cable and accessory connections. Click here for an example (68-pin).

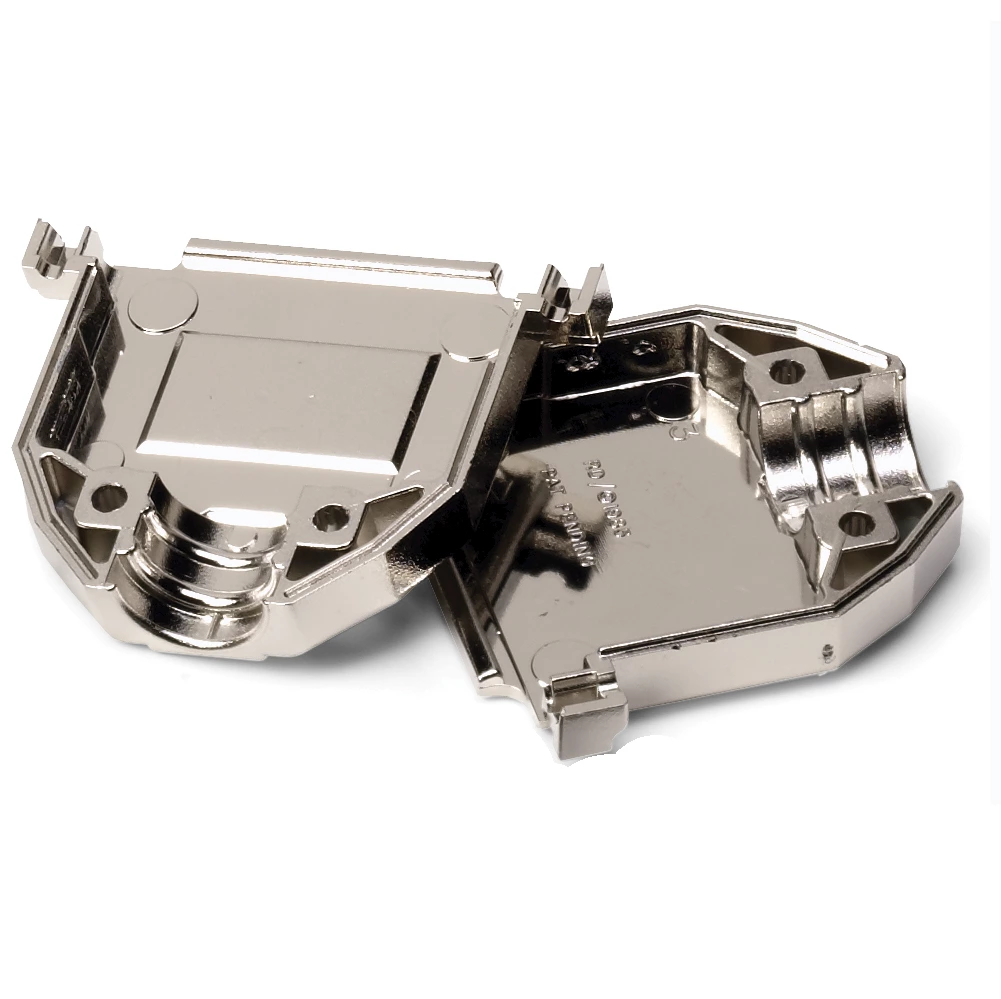

  • Backshell - Surrounds the male or female cable connector to protect the cable connections and to provide cable strain relief. Click here for an example.

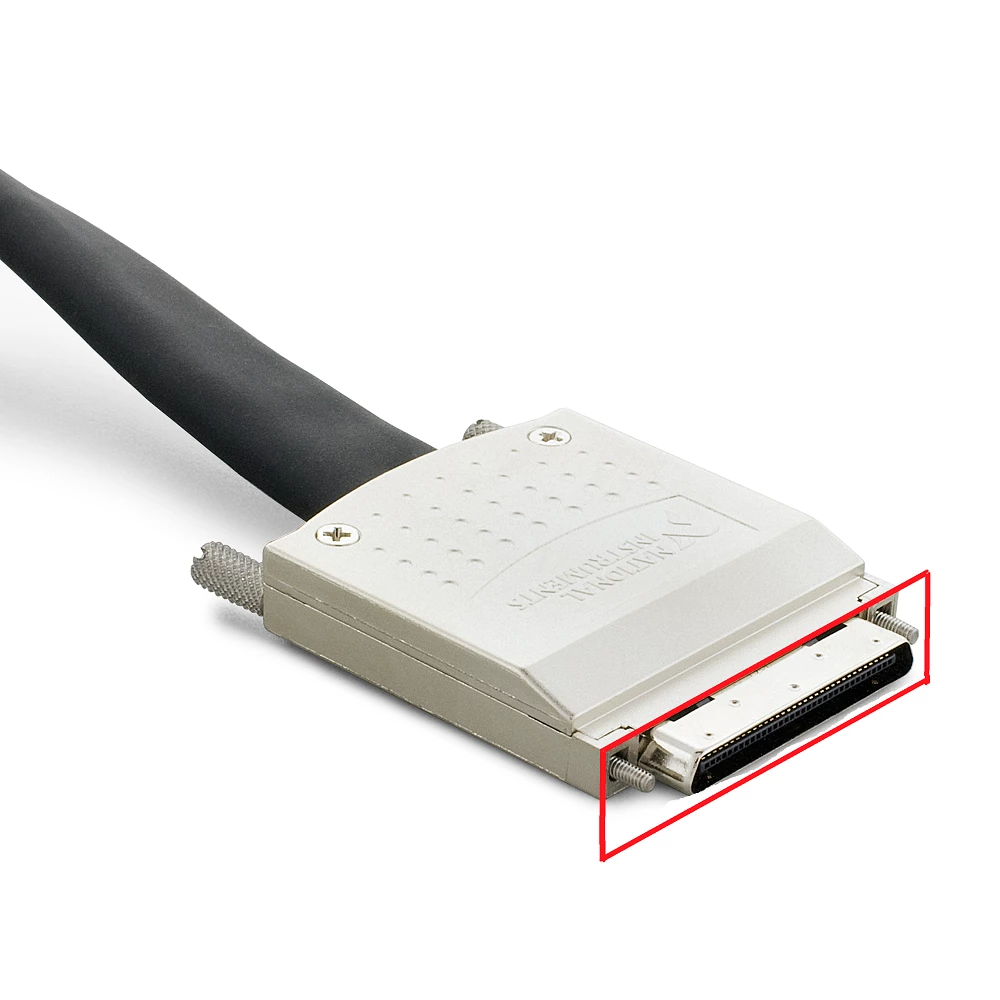

  • Cable Connector - Found on the end of the cable, may connect to a device, another cable, or an accessory through a mating connector. Click here for an example.

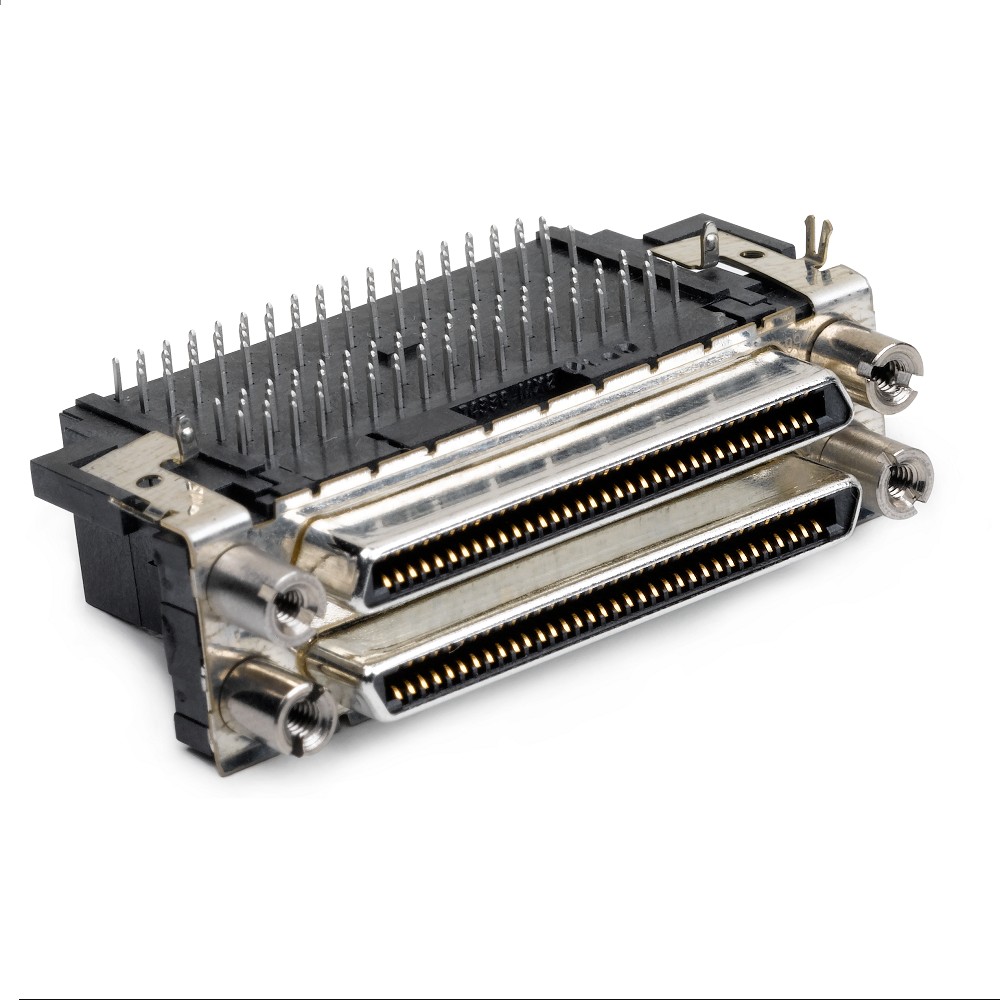

  • Dual Stack - Two combined connectors stacked onto each other on a PCB-mount connector. Each connector accepts its own cable. Click here for an example.
  • D-Sub - Industry standard D-Sub (DSUB) connector that is used on 37-pin DAQ cable and accessory connections. Click here for an example.
  • Insulation Displacement Connector (IDC) - Also known as insulation-piercing contact (IPC). A type of cable connector that allows multiple conductor connections to a connector without soldering. Click here for an example.

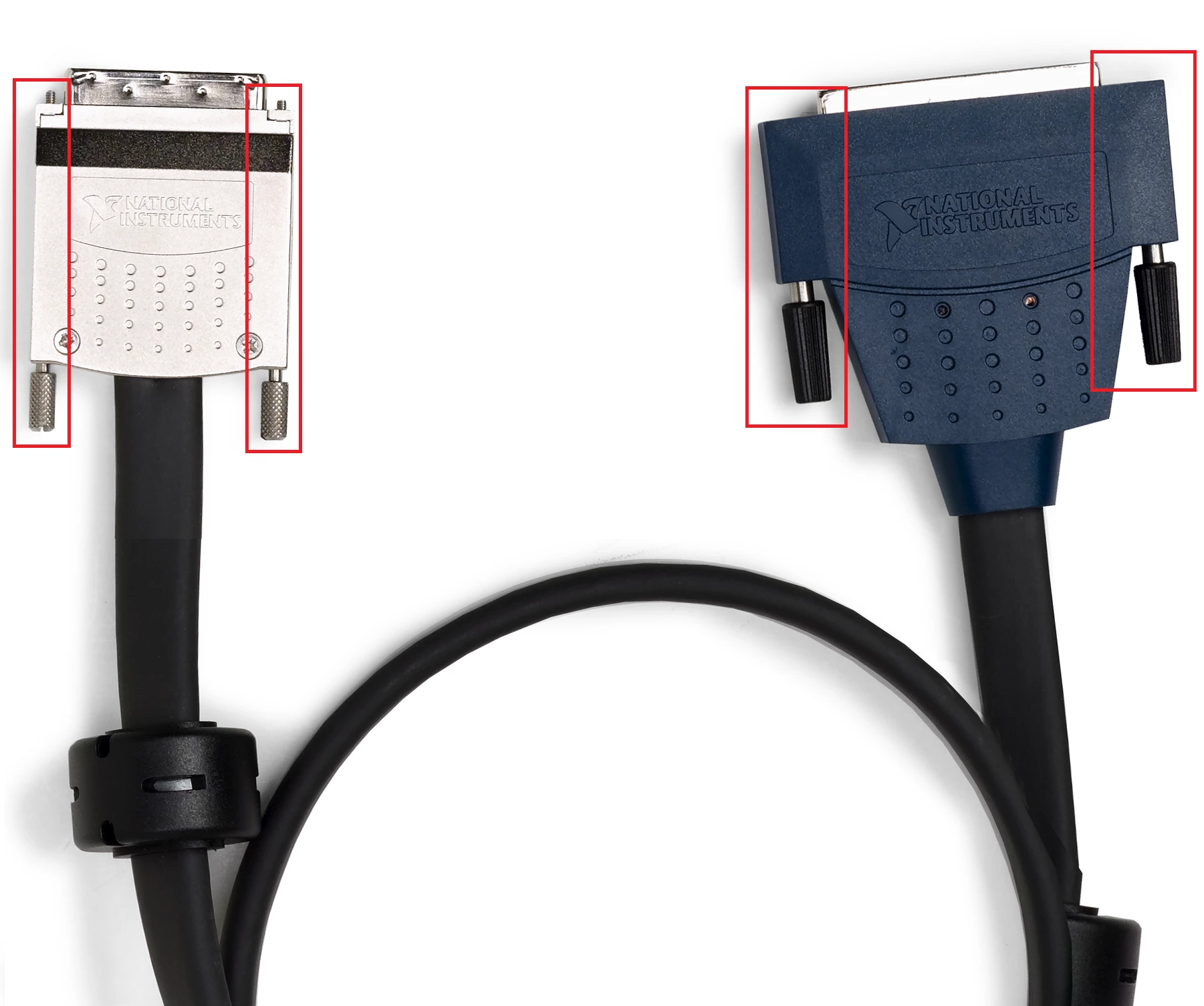

  • Jackscrew - Usually found on the cable end. Torqued down to connect to either a PCB-mount connector or cable-end jacksocket. Click here for an example.

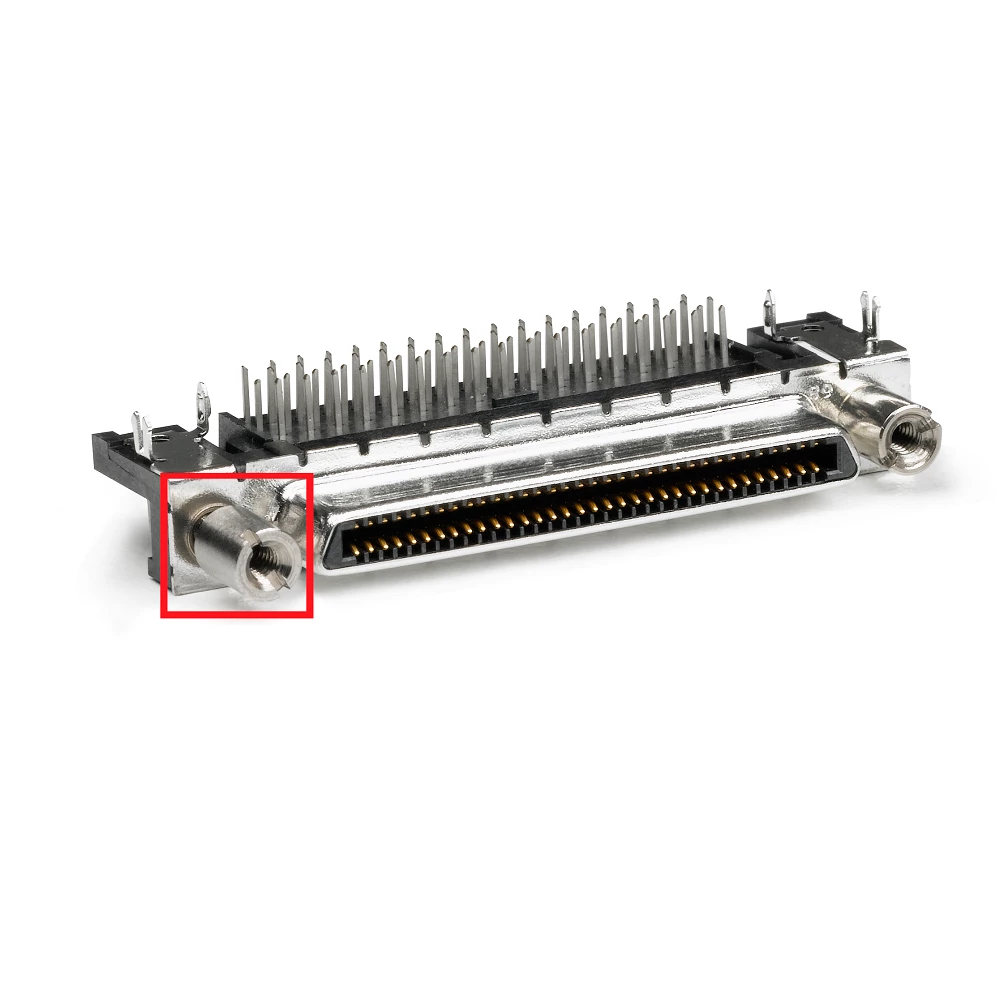

  • Jacksocket - Fixed mating connector receptacle for the jackscrew. Click here for an example.
  • PCB-Mount Connector - Also known as board-mount connector. Found on printed circuit boards (PCB), printed wiring boards (PWB) and other custom interface boards, normally soldered on. Typically a cable connector plugs into the PCB-mount connector to provide connection to an accessory or other device. Click here for an example.

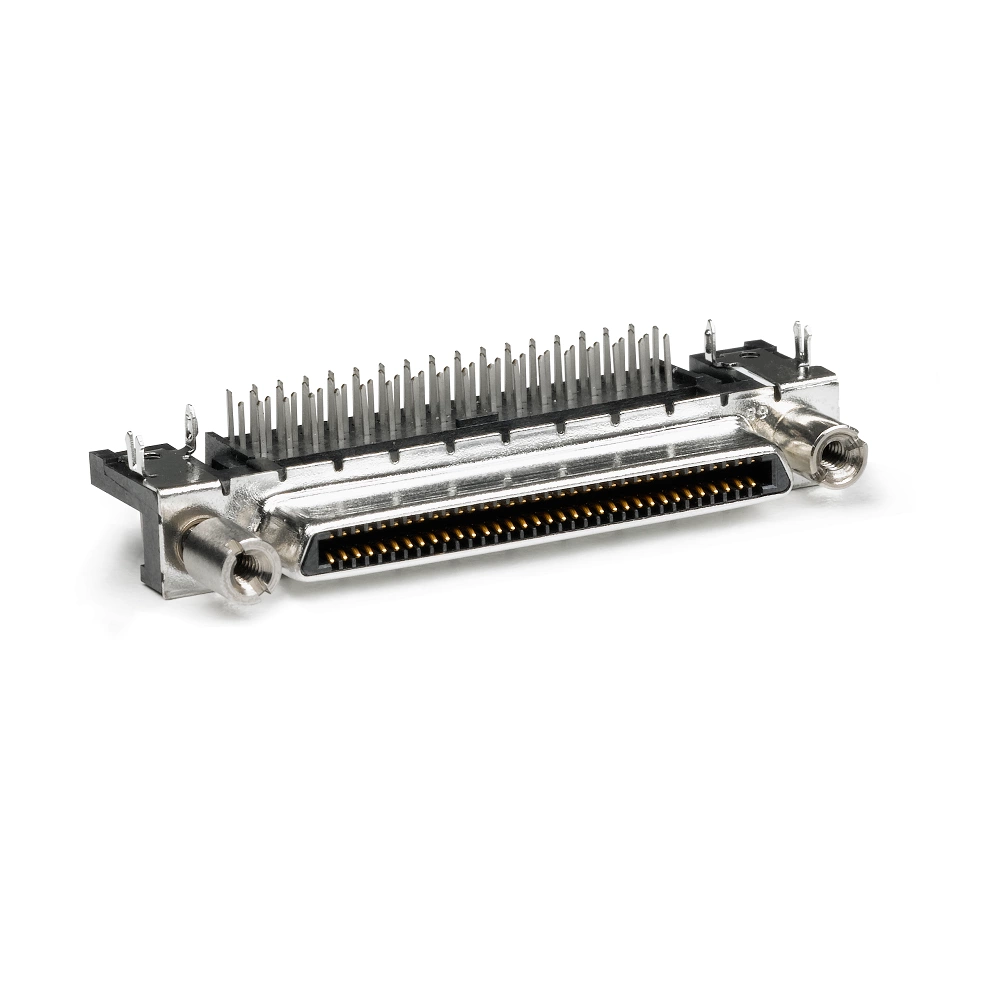

  • Single Stack - A single connector end per cable or PCB-Mount interconnect. Click here for an example.

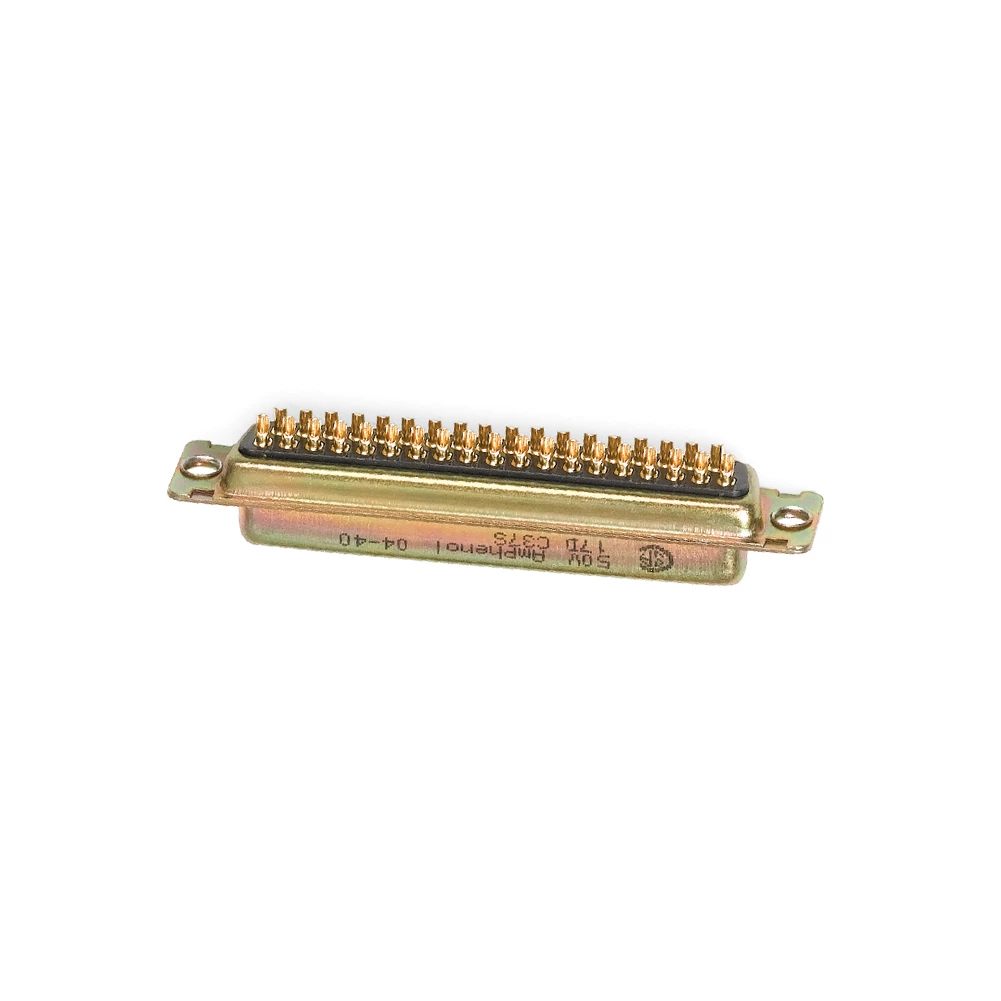

  • Solder-Cup Connector - Opposite of the mating surface, wires are attached to the connector by soldering individual wires into cups. Click here for an example.
  • Very-High-Density Cable Interconnect (VHDCI) - An improvement on a SCSI connector allowing a smaller footprint and fewer bent pins during connection. Click here for an example.
