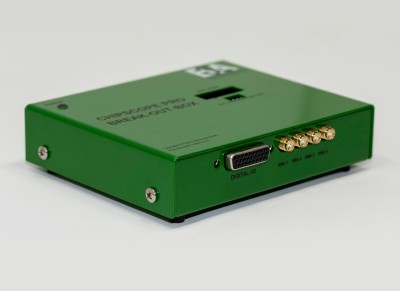

Xilinx ChipScope Pro Debugging Break-Out-Box

B&A Engineering

The Xilinx ChipScope Pro Debugging Break-Out-Box helps you debug FPGA code in real time when working with FlexRIO digital interfaces.

The Xilinx ChipScope Pro Debugging Break-Out-Box is a software add-on for LabVIEW that works with FlexRIO digital interfaces. With this add-on, you can debug your designs in real time using Xilinx ChipScope Pro software and the Xilinx Platform Cable USB/USB II JTAG interface. Additionally, the add-on provides low-voltage differential signaling (LVDS) inputs and outputs for external control, monitoring, and triggering. The Xilinx ChipScope Pro Debugging Break-Out-Box also supports HDMI and FlexRIO very-high-density cable interconnect (VHDCI) interfaces.

+ Read More
