Improving TestStand System Performance

Overview

The performance of your test system can significantly impact the productivity and cost of your manufacturing line. Slow test systems may require costly duplication or decrease test coverage, both of which can affect quality. Optimizing the performance of your test software performance can provide large gains in test time and more thorough testing using fewer test stations.

This article discusses some best practices for optimizing the performance of test stations developed with NI TestStand software. It is important to remember that no one solution works for every test system. Some approaches will decrease performance in certain test systems while increasing it in others. Take time to benchmark your test results before and after implementing any changes to your system so you can evaluate the potential benefits and drawbacks. 

Contents

TestStand Configuration Options

TestStand has several configuration options that can impact performance. The following sections describe those options.

  • Sequence Tracing
  • Options to Balance Execution speed and Memory Usage

Sequence Tracing

Sequence tracing provides immediate feedback and status of the current operation, such as Pass, Fail, Error, or Skipped. However, sequence tracing impacts performance by decreasing execution speed. The following approaches can help you improve execution speed without sacrificing the benefits of sequence tracing.

To improve the performance when sequence tracing is enabled, set the tracing speed to fast to ensure that no additional delay is added between steps. Use the Execution tab of the Station Options dialog box to configure tracing, accessible using Configure» Station Options.

Even when set to the fastest speed, tracing adds a few milliseconds of overhead per step to update the Execution View pane after each step executes. For the fastest performance, you can completely disable tracing. However, if you disable sequence tracing, the execution view does not update as the sequence executes.

To balance performance with the usability benefits of tracing, use the Sequence call trace setting to disable tracing in specific subsequences.  To use this approach, organize your tests into logical groups, and create subsequences for each.  For example, in a test sequence for a mobile device, tests for each component such as the cellular data, user input, and audio systems can each be implemented in separate sequences. For each component’s SequenceCall step, disable tracing within the sequence call.

  1. Select Properties»Run Options 
  2. Set the Sequence Call Trace Setting property to Disable tracing in sequence

Organizing the test sequence in this way allows you to use sequence tracing for the top-level sequence without the performance overhead of tracing each substep. This approach can also be easily adapted to parallel testing, since you can call each subsequence asynchronously. Refer to the Improving Test Performance through Parallel Testing section for more information on parallelizing your test sequence.

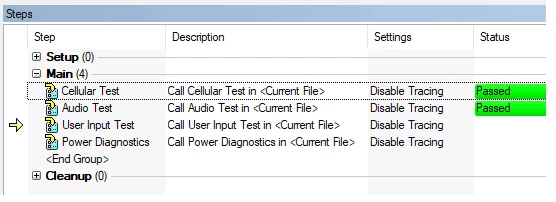

Use sequence call steps with tracing disabled to improve performance and see the execution state

Options to Balance Execution Speed and Memory Usage

TestStand allows you to configure when code modules are loaded into and unloaded from memory, which can have a significant impact on the memory usage and execution speed of a test sequence. Configuring modules to stay in memory longer will improve execution time since the modules will not need to be reloaded on subsequence executions.  However, if too many modules are kept in memory, you can exceed the application memory limits or physical memory available, which can also slow execution.

Ideally, you can make improvements to your test system to increase memory limitations, rather than unloading code modules to conserve memory. For example:

  • Using the 64-bit version of TestStand to increase memory limits of the application. For more information on addressing memory issues with 64-bit TestStand, refer to the Choosing between 32-bit TestStand and 64-bit TestStand Help topic
  • Adding additional physical memory to test systems.
  • Using Solid State hard drives to improve virtual memory performance.

If memory usage is still an issue, you can set the Load/Unload options at step level or at sequence file level. In most test systems, you can combine the Preload when opening sequence file or Preload when execution begins options with the Unload when sequence file is closed option for the best performance.

GoalOptimum Settings
Maximize Execution timesUse Preload when opening sequence file and Unload when sequence file is closed to keep modules in memory until the sequence is closed.  Keeping modules loaded in memory increases speed for subsequent calls.
Reduce Memory UsageUse Load Dynamically and Unload after Step Executes to remove modules from memory as soon as they are no longer in use. However, performance decreases because the module must be reloaded every time a step executes. This setting has additional risks, such as the potential to lose global data within a code module when that code module unloads.

Improving Sequence File Load Performance

File Format

File format can affect speed and performance when loading large sequence files. TestStand allows you to save sequences in the following file formats: INI, XML, and binary.

  • Use XML format only if the file must be viewable in applications without access to the TestStand engine, such as with the Sequence File Viewer tool or another custom viewer.
  • Use INI format only if your sequence file must be compatible with TestStand 3.x or earlier.
  • If neither of the above apply, use the binary format for the fastest load times.

To specify which format to use for new sequence files

  1. Select Configure » Station Options
  2. In the File tab, select the File Format Options button.

To change the format of an existing sequence file:

  1. Select Edit » Sequence File Properties
  2. Select File Format on the General tab.
  3. Choose the desired format in the File Format for New Files menu.

Use the binary file format for the fastest sequence file load times

Search Directory Configuration

The search directory configuration directly affects the time required to load sequence files and code modules when they are specified with relative paths. The search directory configuration impacts the performance of the initial loading and execution of the tests, and subsequent iterations if modules are loaded dynamically. Use the search directory configuration dialog to view and edit the search directories. Select Configure»Search Directories to open the Edit Search Directories dialog box. 

When resolving a code module relative path, TestStand uses the following procedure:

  1. Append the code module path to the first search directory.
  2. Check if the absolute file path exists on disk.
  • If it does exist, the path is resolved.
  • If it does not exist, move to the next directory.

TestStand checks the list of search directories to resolve a relative path to a code module file

Since only a single path is calculated for each search directory, this process typically does not significantly impact performance.

However, if a search directory has the Search Subdirectories option, the process is repeated for every subdirectory within the specified path.  If the path contains a large directory hierarchy, this option can severely impact performance.  In addition, if multiple files with the same name exist within the hierarchy, the incorrect file can be loaded. For these reasons, avoid using this option for any search directories you add.  Instead, ensure that all code module paths are specified using a relative path to the base search directory.

To further optimize the order of search directories, use the following guidelines:

  • Place directories containing the majority of code modules near the top of the list, and less frequently used directories toward the bottom.
  • Place directories located on network drives lower on the list, since network access is slower than local disk access.
  • If you do need to use the Search Subdirectories option, place these directories lowest in the list as a catch-all.

When designing the directory structure for your test system, consider saving code modules in a directory beneath the sequence file path or in a specific code module location.

  • Using paths relative to the sequence file ensures that the first search path (the current sequence file directory) always returns the correct file and prevents the need for additional searches. This also allows you to move the entire folder to another location or computer without having to change the search directories. Use this approach for code modules that are used only by a single sequence file or a set of related sequence files.
  • Using a specific code module location allows you to easily reference code modules from different sequence files by adding the location to the list of search directories.  Use this approach for code modules that are shared by many sequence files.

Improving Code Module Performance

TestStand can call code modules in various development environments to perform test steps. The configuration of these code modules and development environments can have a large impact on performance.  In any code module environment, you can achieve better performance by passing only the necessary data into and out of a code module. Avoid passing large amounts of data that will not be accessed or modified by the code module.

Compiled Code Modules (DLLs)

Compiled code modules, such as .NET assemblies or C/C++ DLLs, can reduce performance when you are using a debug version of the DLL rather than a release version. Typically, developers use debug DLLs in development to make it easier to find and correct problems in the modules. Once the test sequence is ready for deployment, switch to release DLLs to improve performance.

LabVIEW Code Modules

Because LabVIEW VIs are executed directly, they can be executed either in the LabVIEW development environment or the LabVIEW Runtime Engine.  When you run LabVIEW VIs in the development environment, you can use debugging features to troubleshoot code module issues, but execution speed is slower.  For production testing, use the LabVIEW Runtime engine to call VIs. You can configure which LabVIEW server is used to execute LabVIEW code using the LabVIEW adapter dialog:

  1. Select Configure » Adapters
  2. Select the LabVIEW adapter, then click Configure
  3. Select the LabVIEW Run-time engine or LabVIEW development system

To further optimize load times for LabVIEW code, you can build your code module VIs into Packed Project Libraries (PPLs).  Because PPLs contain compiled versions of all VI dependencies of code module Vis, LabVIEW can load the dependencies into memory more quickly.  Alternatively, if you deploy your code using the TestStand Deployment Utility, it can generate PPLs for your Vis as part of the deployment process.

For more information about using PPLs with the TestStand Deployment Utility, refer to the help topic Organizing Test Program Files with LabVIEW Packed Project Libraries.

Improving Test Performance through Parallel Testing

You can often improve test speed by utilizing parallel testing to complete multiple tests simultaneously.  TestStand provides features to help you parallelize the testing of a single UUT, or for testing multiple UUTs simultaneously.

Parallelizing a Test Sequence

When testing a single UUT, you may be able to test multiple portions of the system at the same time.  For example, consider the test sequence for a mobile device. Tests for each component such as the cellular data, user input, and audio systems can each be implemented in separate subsequences. Rather than calling each sequence sequentially, you can configure the sequence call step to call them asynchronously to speed up the test.

To specify that a sequence call should be executed asynchronously:

  1. Select a sequence call step, and click the Module tab.
  2. In the Execution Options menu select the Use New Thread or Use New Execution option.

Calling a sequence in a new thread allows you to test different parts of a UUT simultaneously

When configuring asynchronous sequence calls, consider the differences between using a new thread versus a new execution:

New ThreadNew Execution
Shares the same results collection and report as the callerHas its own results collection and report
Is executed directlyCan be executed using a process model entry point
Shares sequence file global values with callerHas a new copy of Sequence File Global values
Is terminated or Suspended with the callerIs independently Terminated or suspended



Typically, you should use the new thread option for related tests within a test sequence.  Using a new execution is more appropriate for more independent functionality, such as a status monitor which should run independently of the test sequence.

For more information on choosing whether to use a new thread or execution, refer to When to Run a Sequence in a New Execution versus in a New Thread.

Obtaining Results of Asynchronous Sequence Calls

To obtain the results of your asynchronous subsequences for reporting or database logging, use Wait steps at the end of the launching sequence to wait for the asynchronous sequence calls to complete. Once the subsequence thread completes, TestStand attaches the results of the asynchronous subsequence to the Wait step results, making them available for report generation and database logging. To wait on a sequence execution or thread, select Execution or Thread in the Wait for control and specify the execution or thread to wait for.  Keep in mind that adding this wait may cause a delay in execution if the calling sequence completes before the thread, so only use this approach when you need the results of the new thread

Use a wait step to obtain the results of an asynchronous sequence call

Testing Multiple UUTs in Parallel

In addition to using asynchronous calls in your test sequence, TestStand allows you to test multiple UUTs in parallel using the Parallel and Batch Process Models.  These process models create multiple executions which each run the test sequence on a separate UUT.  You can change the process model for the current station or for an individual test sequence file.

Test multiple UUTs simultaneously using the parallel and batch process models

For a demonstration of how parallel testing can improve test times, refer to the Parallel Test Strategies Demo included with TestStand

Choosing Between the Parallel or Batch Process Model

While the Parallel process model allows you to start and finish tests of UUTs at different times, the Batch process model is designed to start and finish the test sequence on all UUTs at the same time.

  • The Parallel process model is ideal for testing multiple UUTs using separate test fixtures, where each UUT is tested independently.
  • The Batch process model ideal for testing UUTs that are tested as a group using a common test fixture or test chamber, where testing must be synchronized for all UUTs

 In addition to starting and ending each batch test at the same time, the batch process model allows you to use batch synchronization steps and settings to further synchronize testing across UUTs in the batch. If certain portions of the test should be run at the same time for all UUTs, you can define synchronized sections for a single step using the step settings, or for multiple steps using the batch synchronization step type.

Use batch synchronization to ensure that certain portions of the test are synchronized for all UUTs in the batch

For all types of batch synchronization sections, all sockets enter and exit the section together.  You can further configure the synchronization to execute sequentially or only in a single thread.

For more information on batch synchronization, refer to the Synchronization Step Types – Batch Synchronization example

Hardware Considerations for Parallel Testing

When testing multiple UUTs in parallel, the available testing hardware can become a performance bottleneck.  When using a shared hardware resource, you must ensure that only one thread is accessing a shared hardware resource at any given time to avoid resource conflicts.  Typically, you use the Lock settings or step types to reserve a shared resource.  However, if multiple threads are waiting on a single resource to complete a test, many of the potential improvements of parallel test will not be realized.  To mitigate this, you can use the following approaches:

  • Use the Auto Schedule Step types to allow other tests to execute while waiting for resources.
  • Use the Execution Profiler to find hardware that is causing the bottleneck and add additional test hardware.

Using Auto Scheduling

The Auto Schedule step type allows you to configure a set of tests that can be executed in any order to optimize test time and hardware utilization.  When an auto Scheduled section is executed using the parallel or batch process model, each socket executes the first section which does not require a reserved resource. For this reason, the execution order can vary between different executions of the same test

Use the auto scheduler to optimize hardware utilization when execution order is not important

Use this approach when the execution order of tests is not important. If your test requires the test results to be presented in a specific order, do not use auto scheduling.

Using the Execution Profiler

The execution profiler tool provided with TestStand is useful for identifying which test hardware is limiting the execution speed of the test system.  Launch the profiler from the Sequence Editor using Tools » Profile Execution.

The profiler allows you to see how much time each hardware resource is active, allowing you to make informed decisions on the impact of adding hardware to the test system.  In the example profile below, the DMM is fully utilized while the Scope is only 66% Utilized.  Based on this profile, adding a second DMM or a DMM with more channels would improve the test time for this sequence.

The execution profiler allows you to visualize which resources are potential bottlenecks in your test configuration

Optimizing Hardware Usage

You can improve test times by ensuring that you are interfacing with hardware in the most efficient way possible.  This section discusses considerations for managing hardware references and measurement techniques to improve performance.

Optimizing Hardware Measurement Performance

For any given hardware configuration, there are several common factors that can decrease test effectiveness. For example, you can use an oscilloscope to measure the rise time, fall time, RMS, and peak values of a signal. If you program the oscilloscope to capture the entire waveform, transfer the waveform to the test system, and then perform post-processing on the data to extract the desired measurements, you will experience decreased performance because of the large amount of data being transferred. Performance is also affected by the latency of the communication bus, so you should consider whether your instrument has a high-latency, such as a LAN or serial connection, or a low-latency bus like PCI or PXI.

If you configure the oscilloscope to measure the rise time, trigger an acquisition, read back the rise time from the instrument, and repeat for each measurement, you must then reconfigure and retrigger the oscilloscope for each measurement. This option also tends to be slow and inefficient.

Considering that many modern oscilloscopes have multiple measurement channels, use the following steps for faster test execution:

  1. Set the test to configure four measurement channels (one for each of the above measurements) in the oscilloscope.  
  2. Trigger a single acquisition.
  3. Read each of the four measurement channels back.

Managing Hardware Reference Lifetimes

Frequently opening and closing sessions to hardware can cause slower performance: upon initializing communication with a device, many drivers transfer large amounts of data to verify communications and configurations. For this reason, it is best to initialize hardware only once per test, while maintaining a session handle which is used throughout the test to access the hardware.

To initialize hardware only once in a test, you can use the ProcessSetup process model callback, which runs before all test code.  In the case of the parallel and batch process models, ProcessSetup executes only once regardless of the number of test sockets. To clean up references, you can use the ProcessCleanup callback, which executes once after all testing is completed. For more information on creating and using process model callbacks, refer to Using Callbacks in NI TestStand.

To access hardware sessions opened in a process model callback, you can use a file global variable which is shared between the callback sequence and the MainSequence.  Alternatively, you can use the session manager, which can automatically manage hardware session lifetimes using an activeX object.  Refer to the Session Manager Examples for more information on using the session manager.

Optimizing Result Processing

There are a number of ways to optimize the impact of result collection on the performance of the system.

Using On-the-Fly Logging

For the built in result processors, you can select the On-The-Fly option to perform logging as the sequence executes, rather than at the end of the test sequence.  Consider these benefits and drawbacks when choosing whether to use this setting

Benefits of on-the-fly logging:

  • Allows the test operator to view the report as the test executes.
  • Preserves results in the case of a critical error in the test program.
  • Uses less memory if used with the Discard Results or Disable Results when not Required by Model setting in the process model options.  When this setting is enabled, any results already processed are removed from the results collection to free memory.  For report generation, you must also enable the Only Display Latest Results option in the report generation settings to conserve memory in this way.

Drawbacks of on-the-fly logging:

  • Decreases test speed due to increased overhead required to log more frequently.
  • More difficult to customize since logging is implemented in a separate server, which cannot be modified.

If some reduction in speed is acceptable in order to gain the benefits of on-the-fly logging, you can mitigate the performance impact by adjusting the on-the-fly settings.  To access these settings:

  1. Select Configure » Result Processing
  2. Select the Show More Options checkbox, then click the Advanced button.

To improve performance, increase the processing interval and/or the Maximum number of Results to decrease the frequency which TestStand logs results.

Processing Results Offline

To reduce time spent generating results, you can log result data in an offline results file, which is a fast and compact raw result format containing all the information TestStand requires to generate a report or log to a database.  Since the file contains only raw result data, it takes less time to process and therefore can improve test throughput.


You use the Offline Results Processing Utility to process raw result files into a test report, or to log the data to a database. Because this is a separate utility, you can run it independently of testing, allowing you to process results at a later time or on a different computer. Use this utility in situations in which test system performance is more important than immediate report generation. For more information, refer to the TestStand Offline Results Processing Utility help.

Optimizing Data Storage

Data stored locally to a hard drive is logged faster than data stored to a network location, though some network data transfer mechanisms are faster than others. For example, using Microsoft Message Queues (MSMQ) to communicate with a database creates local intermediate data files that are then transferred over the network. This is generally faster and safer than writing directly to the remote database. While TestStand does not provide native functionality for using MSMQ, third party tools to implement this type of communication are available.

Logging Only Required Data

Another factor to consider is the amount of data you are logging to the system. Performance decreases as the amount of logged data increases. In order to log only data you require, you can disable result recording for certain steps or sequences.

You can exclude recording results for individual steps by deselecting the Record Result option (Step»Properties»Run Options). You also can set an entire sequence to exclude result recording using the Disable Result Recording For All Steps setting on the Sequence Properties dialog box.

Terminating the Test Upon Failure

In a production environment, you may only need to know that a UUT failed any test, rather than knowing specifically which test failed. In those cases, you can terminate the test at the first failure to free system resources, and then obtain a more detailed failure analysis later.

Depending on your test, some failures may be more severe than others. You may want to terminate the test only when certain steps fail.  You can configure the failure behavior for individual steps or sequences

To end the test on any failure for a specific step:

  1. In the Step properties, select Post Action
  2. In the On Fail menu, select Terminate Execution

To end the test on any failure for a specific sequence:

  1. Right click a Sequence in the sequences pane and select Sequence Properties.
  2. Select Goto Cleanup for the On Step Failure option.

You can also configure this setting for particular test stations, for example only terminating early on production test machines, while always completing the full test on diagnostic machines off the production line.  To configure specific test machines to terminate on test failure:

  1. Select Configure » Station Options
  2. In the execution tab, select Immediately Goto Cleanup on Sequence Failure setting.
