C Series with Spring Terminal Front Connection: I/O Cable & Accessory Guide

Overview

Use this guide to match your C Series Modules with spring terminal front connection with a compatible cable and accessory to meet the needs of your application, whether you are creating a new configuration, replacing or expanding your current configuration, or verifying that existing parts can be used in a different configuration.

This page is part of the C Series I/O Cable and Accessory Compatibility Guide.

Contents

Using this C Series I/O Cable and Accessory Guide

This guide is intended to cover connectors and cables for use with C Series Modules. It does not explicitly cover other NI product families such as DAQ Multifunction I/O, Digital Waveform Instruments (formerly HSDIO), or R Series. It also does not cover legacy or End of Life (EOL) parts or products. Additionally, these products are supported in cRIO and/or cDAQ chassis, but this guide does not cover chassis accessories.

Note: Using the page search functionality in your browser to locate your model may speed up this process. This is typically CTRL+F on Windows or ⌘+F on MacOS.



Finding Your C Series Module

This page is arranged by first having you identify the connector type on your C Series Module, locating the information for your specific model, and then choosing the accessory or cable combination that best fits your needs.

How to identify the model number of your C Series Module:

The model number of the C Series Module is printed on the faceplate of the module and also in the Getting Started that ships with the module.

How to identify the part number (P/N)  and revision of your C Series Module:

The assembly part number and revision of the C Series Module is printed on a label adhered directly to the back of the module. The part number should be formatted as a 10-character alphanumeric string ######<REV>-#<VER>L. For example, a valid part number would be 157874A-01L. In this example, the board would be revision A and version 1.

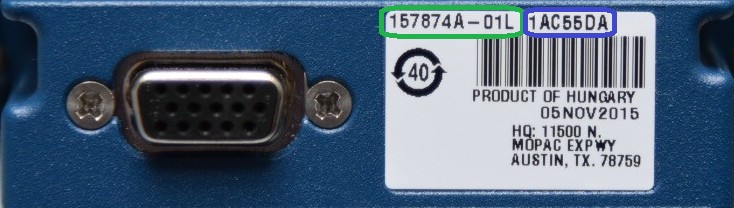

Part Number highlighted in green followed by serial number highlighted in blue.

Figure 1: C Series Module backside showing part number highlighted in green followed by serial number highlighted in blue.


Cable and Accessory Compatibility Tables

Figure 2: C Series with Spring Terminal Front Connection

Note: All C Series Modules with spring terminal front connection ship with the one unit of the recommended spring terminal block. This guide provides accessory guidance for the spring terminals to assist with replacements or the purchasing of additional spring terminal blocks.

Note: N/A= Not Applicable

Cable & Accessories for C Series Module with Spring connection

ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-9205
NI-9206
NI-9207
NI-9208
NI-9209
NI-9213
NI-9216
NI-9220
NI-9226
NI-9264
NI-9375
NI-9425
NI-9476
36NI 9974 36-pos Spring Terminal
P/N: 196740-011, 785502-012
NI 9940 Strain Relief
P/N: 779567-011, 785080-012
N/AN/A

1for C Series Module version 1, 2, or 3
2for C Series Module version 6

ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-920236NI 9974 36-pos Spring  Terminal
P/N: 785502-011
NI 9940 Strain Relief
P/N: 785080-011
N/AN/A

1for all C Series Module versions



ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-925328NI 9964 28-pos Spring Terminal P/N: 786432-01N/AN/AN/A



ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-9235
NI-9236
24NI 9966 34-pos Spring  Terminal
N/A
N/AN/AN/A

1for C Series Module version 1, 2, or 3
2for C Series Module version 6

ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-9201
NI-9203
NI-9215
NI-9221
NI-9263
NI-9265
NI-9421
NI-9423
NI-9437
NI-9472
NI-9474
NI-9482
10

NI 9980 10-pos Spring Terminal

P/N: 197991-01

NI 9981 10-pos  P/N: 783787-01N/AN/A
NI-921010N/ANI 9981 10-pos
P/N: 783787-01


N/A

N/A



ModulesNumber of Pins Spring Terminal BlockStrain Relief & Operation ProtectionDIN Rail Mount Terminal BlockCable
NI-92196

NI 9973 6-pos Front Mount Spring Terminal

P/N: 785993-01

NI 9972 6-pos Strain Relief

 P/N: 786162-01

N/AN/A

Ordering Information

To purchase, order by part number by noting the part number above and adding it to your cart, or you can click a linked part number in the preceding table and add to cart directly from the link in the top right corner of the first search result. You can also contact NI Sales for assistance.

Glossary of Terms Used

  • Backshell - A component that provides Strain Relief and Operator Protection. These terms are synonymous. Click here for an example.
  • EMI Suppression Ferrite - Passive electrical component clamped around a cable to reduce Electromagnetic Interference (EMI) on the line. Click here for an example.
  • Strain Relief and Operator Protection - Surrounds the male or female cable connector to protect the cable connections and to provide cable strain relief. Click here for an example.
  • Screw Terminal Block – A type of connector block that uses screw terminals as the method for connecting wires to your sensor. Click here for an example.
  • DIN Rail Mount Terminal Block - A type of connector block that allows you to mount the block to a DIN rail. Click here for an example.
  • Front Mount Terminal Block – A type of connector block that connects to the front of the module. Click here for an example.
  • Spring Terminal Block - A type of connector block that uses spring terminals as the method for connecting wires to you sensor. Click here for an example.
