C Series with Screw Terminal Front Connection: I/O Cable & Accessory Guide

Overview

Use this guide to match your NI C Series Modules with screw terminal front connection with a compatible cable and accessory to meet the needs of your application, whether you are creating a new configuration, replacing or expanding your current configuration, or verifying that existing parts can be used in a different configuration.

This page is part of the C Series I/O Cable and Accessory Compatibility Guide.

Contents

Using this C Series I/O Cable and Accessory Guide

This guide is intended to cover connectors and cables for use with C Series Modules. It does not explicitly cover other NI product families such as DAQ Multifunction I/O, Digital Waveform Instruments (formerly HSDIO), or R Series. It also does not cover legacy or End of Life (EOL) parts or products. Additionally, these products are supported in cRIO and/or cDAQ chassis, but this guide does not cover chassis accessories.

Note: Using the page search functionality in your browser to locate your model may speed up this process. This is typically CTRL+F on Windows or ⌘+F on MacOS.

Finding Your C Series Module

This page is arranged by first having you identify the connector type on your C Series Module, locating the information for your specific model, and then choosing the accessory or cable combination that best fits your needs.

How to identify the model number of your C Series Module:

The model number of the C Series Module is printed on the faceplate of the module and also in the Getting Started that ships with the module.

Cable and Accessory Compatibility Tables

Figure 1: C Series with Screw Terminal Front Connection

Note: All C Series Modules with screw terminal front connection ship with the one unit of the recommended screw terminal block. This guide provides accessory guidance for the screw terminals to assist with replacements or the purchasing of additional screw terminal blocks.

Note: N/A= Not Applicable

ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable

NI-9266
NI-9252

18

18-pos Screw Terminal

P/N: 787568-01

NI 9928 18-pos Strain Relief

P/N: 784819-01

N/AN/A



ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9217
NI-9224
NI-9228
NI-9422
NI-9436
NI-9485
16NI 9975 16-pos Screw Terminal
P/N: 196741-01

NI 9939 16-pos Strain Relief

P/N: 192692-01


N/AN/A




ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable

NI-9326

12

12-pos Screw Terminal Block

P/N: 785992-01

NI-9929 Backshell Kit

P/N: 787149-01

N/AN/A

ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9201
NI-9203
NI-9215
NI-9221
NI-9263
NI-9265
NI-9421
NI-9423
NI-9435
NI-9437
NI-9472
NI-9474
NI-9481
NI-9482
10cRIO-9936 10-pos Screw Terminal
P/N: 779105-01

NI 9927 10-pos Strain Relief & Operator Protection

P/N: 782715-01

25-pos D-Sub to Screw Terminal

P/N: 781081-01

SH25M-10F Cable 10-Pin Screw Terminal to 25-Pin D-Sub, 1m

P/N: 190654-01

10-Pin Screw Terminal to 25-Pin D-Sub, 2m

P/N: 190654-02

NI-921110N/ANI 9932 10-pos Screw Terminal
P/N: 779017-01
N/AN/A
ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9242
4

N/A

NI 9967 4-pos Strain Relief & Operator Protection

P/N: 783094-011

N/AN/A
NI-92444N/A

NI 9969 4-pos Strain Relief & Operator Protection

P/N: 783154-011

N/AN/A

1Accessory is included in the C Series Module shipping kit

ModulesNumber of PinsScrew Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9222
NI-9223
NI-9225
NI-9227
NI-9229
NI-9230
NI-9232
NI-9238
NI-9239
NI-9269
2

NI 9976 2-pos Screw Terminal

P/N: 196739-01

NI 9971 2-pos Strain Relief & Operator Protection

P/N: 196375-01

N/AN/A

Ordering Information

To purchase, order by part number by noting the part number above and adding it to your cart, or you can click a linked part number in the preceding table and add to cart directly from the link in the top right corner of the first search result. You can also contact NI Sales for assistance.

Glossary of Terms Used

  • Backshell - A component that provides Strain Relief and Operator Protection. These terms are synonymous. Click here for an example.
  • EMI Suppression Ferrite - Passive electrical component clamped around a cable to reduce Electromagnetic Interference (EMI) on the line. Click here for an example.
  • Strain Relief and Operator Protection - Surrounds the male or female cable connector to protect the cable connections and to provide cable strain relief. Click here for an example.
  • Screw Terminal Block – A type of connector block that uses screw terminals as the method for connecting wires to your sensor. Click here for an example.
  • DIN Rail Mount Terminal Block - A type of connector block that allows you to mount the block to a DIN rail. Click here for an example.
  • Front Mount Terminal Block – A type of connector block that connects to the front of the module. Click here for an example.

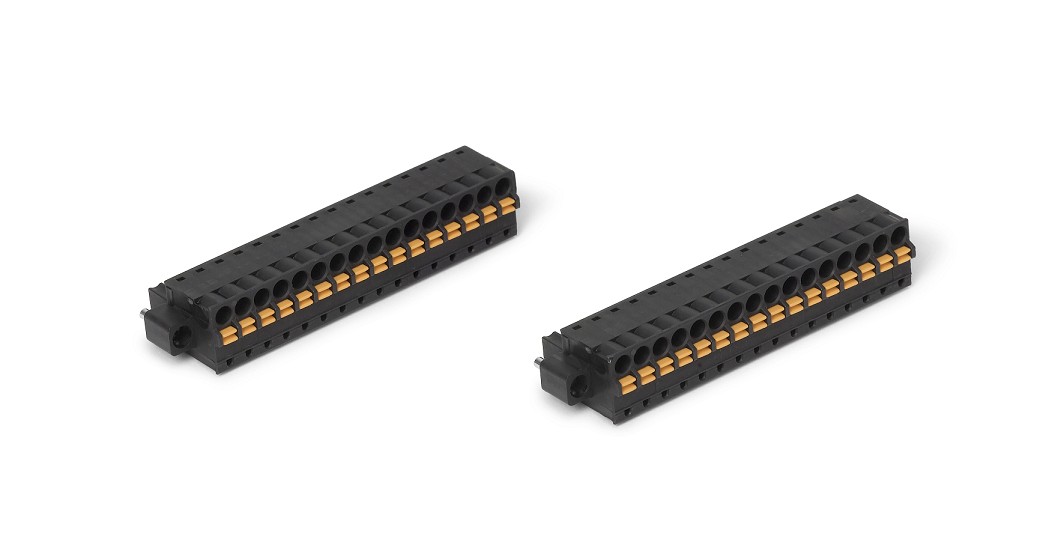

  • Spring Terminal Block - A type of connector block that uses spring terminals as the method for connecting wires to you sensor. Click here for an example.
