C Series with D-Sub Terminal: I/O Cable & Accessory Guide

Overview

Use this guide to match your C Series Modules with a D-Sub front connection with a compatible cable and accessory to meet the needs of your application, whether you are creating a new configuration, replacing or expanding your current configuration, or verifying that existing parts can be used in a different configuration.

This page is part of the C Series I/O Cable and Accessory Compatibility Guide.

Contents

Using this C Series I/O Cable and Accessory Guide

This guide is intended to cover connectors and cables for use with C Series Modules. It does not explicitly cover other NI product families such as DAQ Multifunction I/O, Digital Waveform Instruments (formerly HSDIO), or R Series. It also does not cover legacy or End of Life (EOL) parts or products. Additionally, these products are supported in cRIO and/or cDAQ chassis, but this guide does not cover chassis accessories.

Note: Using the page search functionality in your browser to locate your model may speed up this process. This is typically CTRL+F on Windows or ⌘+F on MacOS.



Finding Your C Series Module

This page is arranged by first having you identify the connector type on your C Series Module, locating the information for your specific model, and then choosing the accessory or cable combination that best fits your needs.

How to identify the model number of your C Series Module:

The model number of the C Series Module is printed on the faceplate of the module and also in the Getting Started that ships with the module.



Cable and Accessory Compatibility Tables

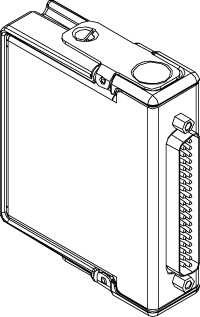

Figure 1: C Series Accessory Guide with D-Sub Terminal Front Connection



Note: All DIN Rail Terminal Blocks require a cable.



Note: N/A= Not Applicable

Cable & Accessories for C Series Module with D-Sub connection
ModulesNumber of Pins Front Mount Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9205
NI-9207
NI-9208
NI-9209
NI-9220
NI-9226
NI-9262
NI-9264
NI-9266
NI-9361
NI-9375
NI-9381
NI-9403
NI-9425
NI-9426
NI-9476
NI-9477
NI-9478
NI-9216
NI-9202
NI-9262
NI-9252
37

NI 9923 Screw Terminal Block (Recommended)P/N: 781503-01

NI TB-37F-37SC P/N: 779184-01



N/ASpring Terminal Block  Vertical Mount

P/N: 778685-01

Spring Terminal Block Horizontal Mount

P/N: 778676-01

Screw Terminal Block Vertical Mount P/N:778672-01

Screw Terminal Block  Horizontal Mount

P/N: 778673-01

High-Voltage Screw Terminal Horizontal Mount P/N: 779491-01



SH37F-37M P/N:778621-01

SH37F-P-4 Pigtail P/N:778620-04

DB37F-DB37M Low Profile

P/N: 154302-01

DB37F-Pigtail Low Profile

P/N: 782316-04

NI-923737

NI 9923 Screw Terminal Block (Recommended)P/N: 781503-01

NI TB-37F-37SC P/N: 779184-01

NI CB-37F-LP P/N:779353-01



N/ASpring Terminal Block  Vertical Mount

P/N: 778685-01

Spring Terminal Block Horizontal Mount

P/N: 778676-01

Screw Terminal Block Vertical Mount P/N:778672-01

Screw Terminal Block  Horizontal Mount

P/N: 778673-01



SH37F-37M P/N:778621-01

SH37F-P-4 Pigtail P/N:778620-04

DB37F-DB37M Low Profile

P/N: 154302-01

DB37F-Pigtail Low Profile

P/N: 782316-04

SH37F-Tajimi

P/N: 199254-01



Cable & Accessories for C Series Module with D-Sub connection
ModulesNumber of Pins Front Mount Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-9201
NI-9221
NI-9401
NI-9421
NI-9472
NI-9475
25NI 9924 Screw Terminal Block (Recommended) P/N: 781922-01N/AScrew Terminal Block Horizontal Mount
P/N: 781081-01

SH25F-25M
P/N: 192568-01

SHDB25F-DB25M Low Profile
P/N: 154742-01



Cable & Accessories for C Series Module with D-Sub connection
ModulesNumber of PinsFront Mount Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-941115NI 9935 Screw Terminal Block (Recommended) P/N: 785338-01N/AScrew Terminal Block Horizontal Mount

P/N: 785334-01

DB15F-DB15M  P/N: 141856-01



Cable & Accessories for C Series Module with D-Sub connection
ModulesNumber of PinsFront Mount Terminal BlockStrain Relief & Operator ProtectionDIN Rail Mount Terminal BlockCable
NI-92189NI 9982F Screw Terminal Block

P/N: 784137-01

NI 9983F Current Shunt

P/N: 784138-01

NI 9984F 1/4 Bridge Completion 120Ohm P/N: 784139-01

NI 9985F 1/4 Bridge Completion 350Ohm P/N: 784140-01

NI 9986F 1/2 Bridge Completion

P/N: 784141-01

NI 9987F 60V

P/N: 784142-01

2-Pos Micro-Fit Plug And Crimp Terminal Kit P/N: 783799-01

N/AN/ANI 9982D Screw Terminal Block

P/N: 783411-01

NI 9983D Current Shunt

P/N: 783413-01

NI 9984D 1/4 Bridge Completion 120Ohm

P/N: 783415-01

NI 9985D 1/4 Bridge Completion 350Ohm

P/N: 783417-01

NI 9986D 1/2 Bridge Completion

P/N: 783419-01

NI 9987D 60V

P/N: 783421-01

Pigtail Cable

P/N: 157867-01

Micro-Fit to Pigtail Power Cable

P/N: 157935-01



Ordering Information

To purchase, order by part number by noting the part number above and adding it to your cart, or you can click a linked part number in the preceding table and add to cart directly from the link in the top right corner of the first search result. You can also contact NI Sales for assistance.

Glossary of Terms Used

  • Backshell - A component that provides Strain Relief and Operator Protection. These terms are synonymous. Click here for an example.
  • EMI Suppression Ferrite - Passive electrical component clamped around a cable to reduce Electromagnetic Interference (EMI) on the line. Click here for an example.
  • Strain Relief and Operator Protection - Surrounds the male or female cable connector to protect the cable connections and to provide cable strain relief. Click here for an example.

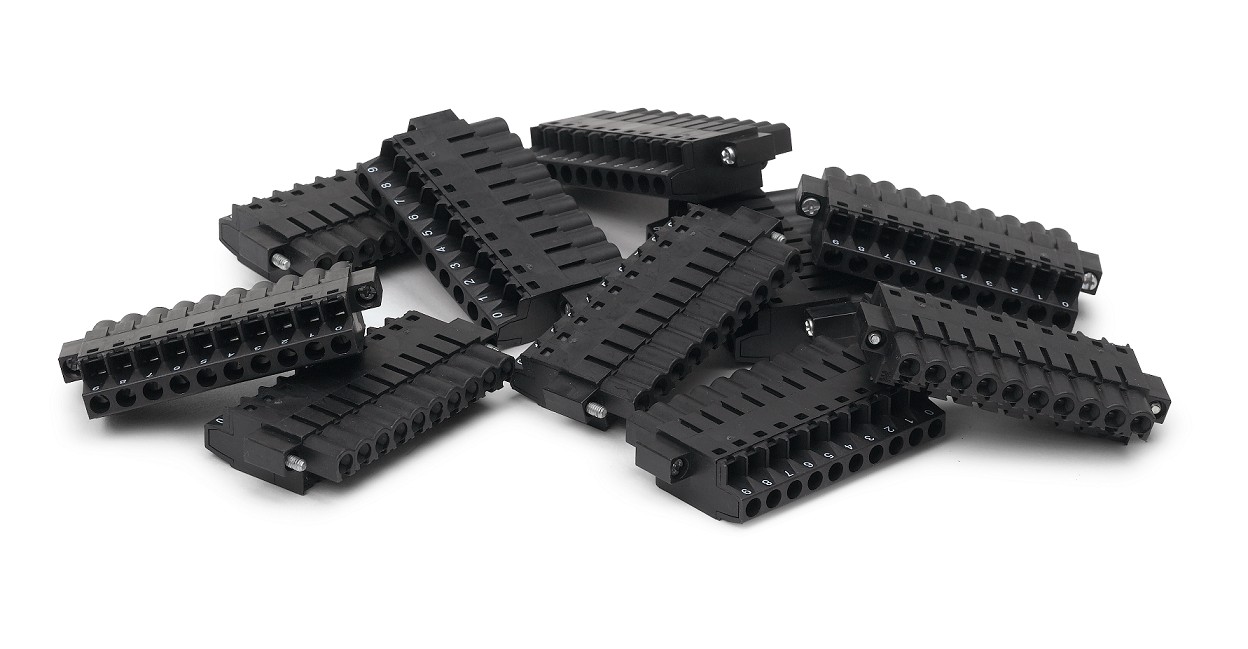

  • Screw Terminal Block – A type of connector block that uses screw terminals as the method for connecting wires to your sensor. Click here for an example.
  • DIN Rail Mount Terminal Block - A type of connector block that allows you to mount the block to a DIN rail. Click here for an example.
  • Front Mount Terminal Block – A type of connector block that connects to the front of the module. Click here for an example.
  • Spring Terminal Block - A type of connector block that uses spring terminals as the method for connecting wires to you sensor. Click here for an example.
