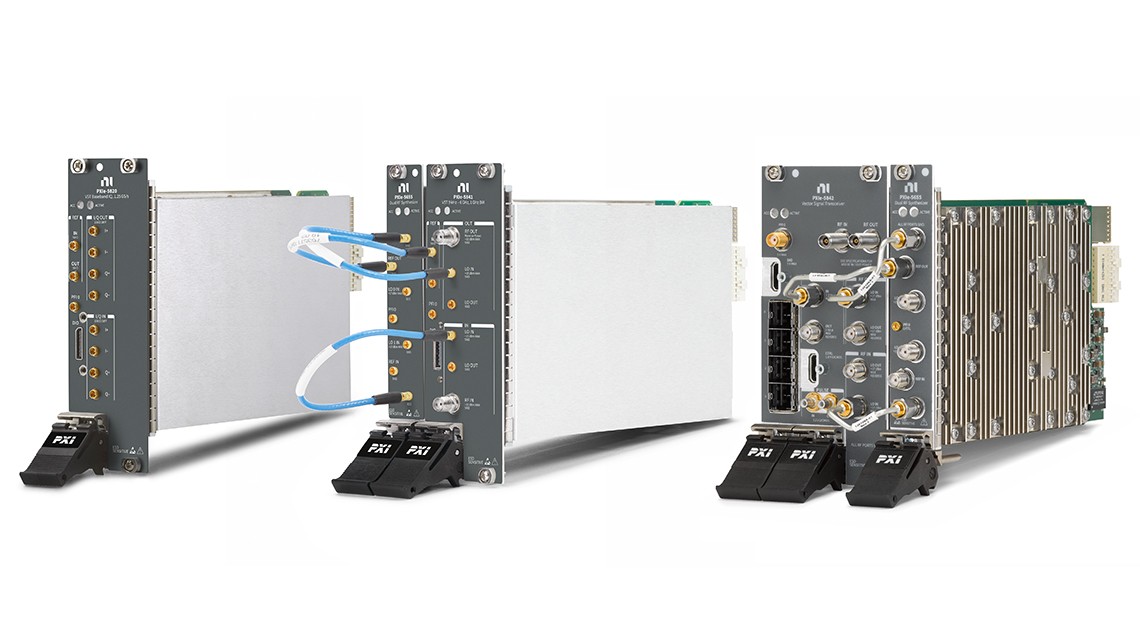

The PXIe-5831 and PXIe-5842 VSTs can connect to mmWave remote measurement modules, extending frequency coverage up 44 GHz or 54 GHz. You can also connect the PXIe-5842 to third-party frequency up-and down-converters, enabling frequency coverage to sub-THz. These capabilities offer a complete solution for RF and baseband I/Q test. Sub-nanosecond synchronization and wideband capabilities support 5G mmWave sub-THz research, and radar prototyping applications.
With frequency coverage from baseband to mmWave and up to 2 GHz instantaneous bandwidth, VSTs are ideally suited for carrier aggregation, digital predistortion, and radar testing.
The combination of low phase noise, high linearity, and patented IQ calibration enables VSTs to achieve best-in-class EVM performance with higher order modulation schemes.
Easy-to-use and customizable DPD algorithms and up to 2 GHz of instantaneous RF bandwidth enables quick and easy implementation of DPD in RFIC characterization.
The Electronically Scanned Array (ESA) characterization reference architecture’s IP library and VST allow characterization of power amplifiers and transmit/receive modules.
Combining a VSA and VSG in a PXI form factor instrument, PXI VSTs can easily integrate with other instruments for both parametric and system level test, such as satellite link emulation.
By pairing the PXIe-5842 VST with NI software like RFmx, RFmx Waveform Creator, and InstrumentStudio™ software, you can generate CW signals, tones, and multi-tones. You can also use the vector signal analyzer capabilities of the VST to perform spectrum analysis.
Application Notes
RF Measurement Fundamentals
Understanding RF testing best practices and obtaining accurate results is crucial for efficient test procedures. Learn how to use RF instruments for the measurements required in RF characterization tests.
The PXIe-5842 Vector Signal Transceiver offers continuous frequency coverage from 30 MHz up to 26.5 GHz and up to 2 GHz instantaneous RF bandwidth. See how you can prepare for the requirements of tomorrow’s RF and wireless technologies with the PXIe-5842.
In this webinar, learn about the PXIe-5842 and its best-in-class RF performance, frequency coverage, and bandwidth. See its capabilities firsthand through demonstrations including power amplifier EVM measurements and satellite link emulation.
In this webinar, learn about the PXIe-5842 out-of-the box capabilities, such as generating parametric waveforms, performing spectral analysis, and other new features.
Explore a wide range of support content, including examples and troubleshooting information.
