Radar Toolkit (RTK) for LabVIEW by Constelli
Simulating, prototyping, and testing radar systems in a variety of lab or field conditions requires automated testing equipment (ATE) or a radar simulator system. The radar measurements must be repeated many times on a pulse-to-pulse basis, and complex functional test case scenarios need to be simulated. With a ready-to-use toolkit and NI modular hardware, you can:
- Accelerate the development of custom applications for radar test and measurement
- Scale radar simulation using a flexible solution
- Reduce the cost of testing radar systems in complex scenarios
Solution Overview

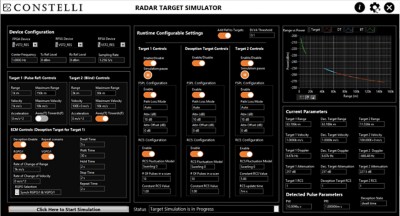

- Ready-to-use LabVIEW toolkit for radar measurements and generation for target echo simulation on any NI RF hardware with FlexRIO, USRP, and PXI Vector Signal Transceiver (VST) FPGAs
- Compatibility with most NI RF and FPGA hardware including PXI VST, PXI FPGA Module for FlexRIO, PXI FlexRIO Coprocessor Module, and RF signal analysis and generation hardwareExample library to help build applications faster with FPGA-focused frameworks for radar echo simulations and radar signal generation and analysis
Solution Advantages
-
Extend the built-in analysis capability of NI LabVIEW and LabVIEW FPGA
-
Take advantage of tools for radar signal generation and measurements as well as the visualization of standard and custom radar signals
-
Rapidly develop custom applications for radar test and measurements, simulators, research, design and prototyping, and academia
Constelli is an NI Partner Network partner specializing in technologies and solutions for signal processing and radar test in the aerospace, defense, and commercial industries.
