PCIe-5785 Specifications

Definitions

Warranted specifications describe the performance of a model under stated operating conditions and are covered by the model warranty.

Characteristics describe values that are relevant to the use of the model under stated operating conditions but are not covered by the model warranty.

  • Typical specifications describe the performance met by a majority of models.
  • Nominal specifications describe an attribute that is based on design, conformance testing, or supplemental testing.
  • Measured specifications describe the measured performance of a representative model.

Specifications are Typical unless otherwise noted.

Digital I/O

Connector

Molex™ Nano-Pitch I/O™

5.0 V Power

±5%, 50 mA maximum, nominal

Table 1. Digital I/O Signal Characteristics
Signal Type Direction
MGT Tx± <0..3>[1] Xilinx UltraScale GTH Output
MGT Rx± <0..3>[1] Xilinx UltraScale GTH Input
DIO <0..7> Single-ended Bidirectional
5.0 V DC Output
GND Ground

Digital I/O Single-Ended Channels

Number of channels

8

Signal type

Single-ended

Voltage families

3.3 V, 2.5 V, 1.8 V, 1.5 V, 1.2 V

Input impedance

100 kΩ, nominal

Output impedance

50 Ω, nominal

Direction control

Per channel

Minimum required direction change latency

200 ns

Maximum output toggle rate

60 MHz with 100 μA load, nominal

Table 2. Digital I/O Single-Ended DC Signal Characteristics[2]
Voltage Family (V) VIL (V) VIH (V) VOL (100 µA Load) (V) VOH (100 µA Load) (V) Maximum DC Drive Strength (mA)
3.3 0.8 2.0 0.2 3.0 24
2.5 0.7 1.6 0.2 2.2 18
1.8 0.62 1.29 0.2 1.5 16
1.5 0.51 1.07 0.2 1.2 12
1.2 0.42 0.87 0.2 0.9 6

Digital I/O High-Speed Serial MGT[3]

Note MGTs are available on devices with KU040 and KU060 FPGAs only.

Data rate

500 Mbps to 16.375 Gbps, nominal

Number of Tx channels

4

Number of Rx channels

4

I/O AC coupling capacitor

100 nF

MGT TX± Channels[4]

Minimum differential output voltage[5]

170 mV pk-pk into 100 Ω, nominal

I/O coupling

AC-coupled, includes 100 nF capacitor

MGT RX± Channels

Differential input voltage range

≤ 6.6 Gb/s

150 mV pk-pk to 2000 mV pk-pk, nominal

> 6.6 Gb/s

150 mV pk-pk to 1250 mV pk-pk, nominal

Differential input resistance

100 Ω, nominal

I/O coupling

DC-coupled, requires external capacitor

Reconfigurable FPGA

PCIe-5785 modules are available with multiple FPGA options. The following table lists the FPGA specifications for the PCIe-5785 FPGA options.

Table 3. Reconfigurable FPGA Options
KU035 KU040 KU060
LUTs 203,128 242,200 331,680
DSP48 slices (25 × 18 multiplier) 1,700 1,920 2,760
Embedded Block RAM 19.0 Mb 21.1 Mb 38.0 Mb
Data Clock Domain 200 MHz, 16 samples per cycle per channel (dual channel mode), 32 samples per cycle (single channel mode)
Timebase reference sources Onboard 100 MHz oscillator
Data transfers DMA, interrupts, programmed I/O DMA, interrupts, programmed I/O, multi-gigabit transceivers
Number of DMA channels 60
Note The Reconfigurable FPGA Options table depicts the total number of FPGA resources available on the part. The number of resources available to the user is slightly lower, as some FPGA resources are consumed by board-interfacing IP for PCI Express, device configuration, and various board I/O. For more information, contact NI support.

Onboard DRAM

Memory size

4 GB (2 banks of 2 GB)

DRAM clock rate

1064 MHz

Physical bus width

32 bit

LabVIEW FPGA DRAM clock rate

267 MHz

LabVIEW FPGA DRAM bus width

256 bit per bank

Maximum theoretical data rate

17 GB/s (8.5 GB/s per bank)

Analog Input

General Characteristics

Number of channels

2, single-ended, simultaneously sampled

Connector type

SMA

Input impedance

50 Ω

Input coupling

AC

Sample Clock

Internal Sample Clock

3.2 GHz

External Sample Clock

2.8 GHz to 3.2 GHz

Sample Rate

Dual channel mode

3.2 GS/s per channel

Single channel mode

6.4 GS/s

Analog-to-digital converter (ADC)

ADC12DJ3200, 12-bit resolution

Input latency[6]

239 ns

Typical Specifications

Full-scale input range

1.25 V pk-pk (5.92 dBm) at 10 MHz

AC gain accuracy

±0.11 dB at 10 MHz

DC offset

±2.19 mV

Bandwidth (-3 dB)[7]

500 kHz to 6 GHz

Table 4. Single-Tone Spectral Performance, Dual Channel Mode
Input Frequency
99.9 MHz 399 MHz 999 MHz 1.999 GHz 2.499 GHz
SNR[8] (dBFS) 56.0 55.6 54.7 52.9 51.6
SINAD[8] (dBFS) 55.5 55.0 54.0 51.8 50.8
SFDR (dBc) -64.9 -63.4 -62.7 -59.9 -58.6
ENOB[9] (bits) 8.9 8.8 8.7 8.3 8.1
Table 5. Single-Tone Spectral Performance, Single Channel Mode[10]
Input Frequency
99.9 MHz 399 MHz 999 MHz 1.999 GHz 2.499 GHz
SNR[8] (dBFS) 54.6 54.2 52.4 49.7 48.9
SINAD[8] (dBFS) 54.4 53.9 52.1 49.4 48.6
SFDR (dBc) -61.7 -60.4 -56.1 -51.7 -51.1
ENOB[9] (bits) 8.7 8.7 8.4 7.9 7.8
Table 6. Noise Spectral Density[11]
Mode
nVHz
dBmHz
dBFSHz
Dual channel 14.4 -143.8 -149.2
Single channel 9.8 -147.2 -152.6
Note Noise spectral density is verified using a 50 Ω terminator connected to the input.
Figure 1. Single Tone Spectrum (Dual Channel Mode, 99.9 MHz, -1 dBFS, 3.2 kHz RBW), Measured

1378

Figure 2. Single Tone Spectrum (Dual Channel Mode, 1.999 GHz, -1 dBFS, 3.2 kHz RBW), Measured

1378

Figure 3. Single Tone Spectrum (Single Channel Mode, 99.9 MHz, -1 dBFS, 3.2 kHz RBW), Measured

1378

Figure 4. Single Tone Spectrum (Single Channel Mode, 1.999 GHz, -1 dBFS, 3.2 kHz RBW), Measured

1378

Channel-to-channel crosstalk, measured

99.9 MHz

-92.5 dB

399 MHz

-85.5 dB

999 MHz

-76.5 dB

1.999 GHz

-68.8 dB

2.499 GHz

-67.4 dB

Figure 5. Analog Input Frequency Response, Measured

1378

Figure 6. Input Return Loss, Measured

1378

Analog Output

General Characteristics

Number of channels

2, single-ended, simultaneously updated

Connector type

SMA

Output impedance

50 Ω

Output coupling

AC

Update rate

Internal Sample Clock, 2x interpolation

6.4 GS/s

External Sample Clock, 2x interpolation

6.4 GS/s [12]

Data rate (per channel)

Dual channel mode

3.2 GS/s, real

Single channel mode

3.2 GS/s, complex

Digital-to-analog converter (DAC)

DAC38RF82, 12-bit resolution

Output latency[13]

DUC disabled

211 ns

DUC enabled

221 ns

Typical Specifications

Note Due to a silicon flaw in the TI DAC38RF82 chip, there is a 0.5% chance of seeing a 50 mV glitch at the output of either channel after a bitfile re-download, invoking the Reset method explicitly or by closing the FPGA reference, or committing a new configuration.
Full-scale output power[14]

Dual Channel Mode

2.85 dBm (878 mVpp)

Single Channel Mode

-3.33 dBm (431 mVpp)

Bandwidth (-3 dB)[15]

Dual Channel Mode

3 MHz to 1.53 GHz

Single Channel Mode (no anti-image filter)

60 MHz to 2.85 GHz

Single Channel Mode (with anti-image filter)

60 MHz to 2.35 GHz

Table 7. Single Tone Spectral Performance, Dual Channel Mode[16]
Generation Frequency
501 MHz 1.01 GHz
2nd HD (dBc) -67.8 -61.7
3rd HD (dBc) -63.0 -62.0
SFDR (dBc) -63.0 -61.7
Table 8. Single Tone Spectral Performance, Single Channel Mode[16]
Generation Frequency
1.01 GHz
2nd HD (dBc) -62.4
3rd HD (dBc) -67.3
SFDR (dBc) -62.4
Table 9. IMD3 Performance, Dual Channel Mode, Measured[17]
Generation Frequency
501 MHz and 511 MHz 1.005 GHz and 1.015 GHz
IMD3 (dBc) -73.9 -67.6
Table 10. Noise Spectral Density[18]
501 MHz Generation Frequency
Mode
nVHz
dBmHz
dBFSHz
Dual Channel 1.18 -165.5 -168.4
Single Channel 0.941 -167.5 -164.2
Figure 7. Single Tone Spectrum (Dual Channel Mode, 501 MHz 0 dBFS), Measured[19]

1378

Figure 8. Single Tone Spectrum (Dual Channel Mode, 1.01 GHz 0 dBFS), Measured[19]

1378

Figure 9. Single Tone Spectrum (Single Channel Mode, 1.01 GHz 0 dBFS), Measured[19]

1378

Channel-to-channel crosstalk, measured[20]

100 MHz

-82 dBc

500 MHz

-91 dBc

1.0 GHz

-90 dBc

1.5 GHz

-88 dBc

2.0 GHz

-82 dBc

2.5 GHz

-82 dBc

Figure 10. Analog Output Dual Channel Mode Frequency Response, Measured[21]

1378

Figure 11. Analog Output Single Channel Mode Frequency Response, No Anti-Image Filter, Measured[21]

1378

Figure 12. Analog Output Single Channel Mode Frequency Response With Anti-Image Filter, Measured[22]

1378

Figure 13. Analog Output Return Loss, Measured

1378

REF/CLK IN

General Characteristics

Connector type

SMA

Input impedance

50 Ω

Input coupling

AC

Input voltage range

0.35 V pk-pk to 3.5 V pk-pk, nominal

Absolute maximum voltage

±12 V DC, 4 V pk-pk AC

Duty cycle

45% to 55%

Sample Clock jitter

Analog input

86.8 fsrms, measured[23]

Analog output

198.8 fsrms, measured[24]

Table 11. Clock Configuration Options
Clock Configuration External Clock Frequency Description
Internal Baseboard Reference Clock[25] 10 MHz The internal Sample Clock locks to the 10 MHz Reference Clock provided from the FPGA baseboard.
External Reference Clock (REF/CLK IN) 10 MHz [26] The internal Sample Clock locks to an external Reference Clock, which is provided through the REF/CLK IN front panel connector.
External Sample Clock (REF/CLK IN) 2.8 GHz to 3.2 GHz An external Sample Clock can be provided through the REF/CLK IN front panel connector.

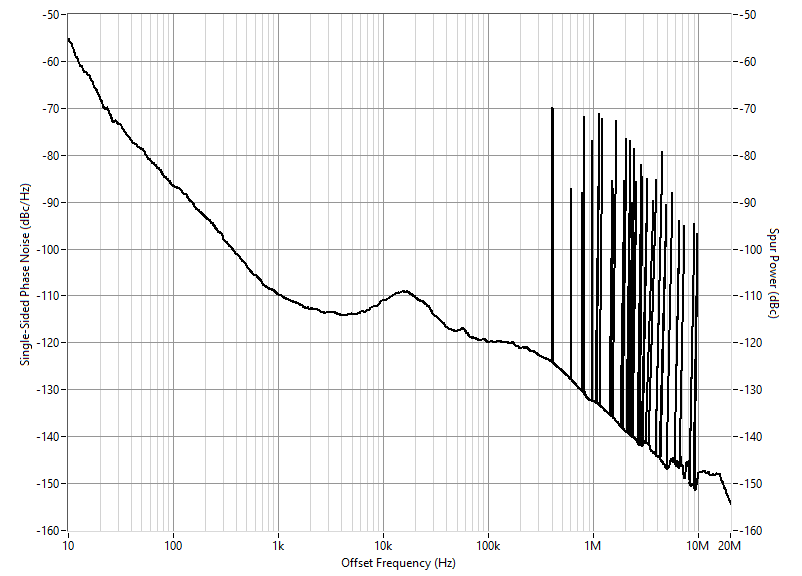

Figure 14. Analog Input Phase Noise with 800 MHz Input Tone, Measured

1378

Figure 15. Analog Output Phase Noise with 1 GHz Output Tone, Measured

1378

Bus Interface

Card edge form factor

PCI Express Gen-3 x8

Slot compatibility

x8 and x16 PCI Express slots

Maximum Power Requirements

Note Power requirements depend on the contents of the LabVIEW FPGA VI used in your application.

+3.3 V

4.5 A

+12 V

5 A

Maximum total power

75 W

Physical

Dimensions (including I/O bracket, not including connectors)

12.6 cm × 26.3 cm × 4 cm (5.0 in. × 10.4 in. × 1.6 in.)

Weight

990 g (35 oz)

PCI Express mechanical form factor

Standard height, three-quarter length, double slot

Integrated air mover (fan)

Yes

Maximum rear panel exhaust airflow

84 m3/h (50 CFM) (without any chassis impedance)

Environmental

Maximum altitude

2,000 m (800 mbar) (at 25 °C ambient temperature)

Pollution degree

2

Indoor use only.

Operating Environment

Operating temperature, local[27]

0 °C to 45 °C

Operating humidity

10% to 90% RH, noncondensing

Storage Environment

Ambient temperature range

-20 °C to 70 °C

Relative humidity range

5% to 95% RH, noncondensing

1 Multi-gigabit transceiver (MGT) signals are available on devices with KU040 and KU060 FPGAs only.

2 Voltage levels are guaranteed by design through the digital buffer specifications.

3 For detailed FPGA and High-Speed Serial Link specifications, refer to Xilinx documentation.

4 For detailed FPGA and High-Speed Serial Link specifications, refer to Xilinx documentation.

5 800 mV pk-pk when transmitter output swing is set to the maximum setting.

6 SMA input to LabVIEW diagram

7 Normalized to 10 MHz.

8 Measured with a -1 dBFS signal and corrected to full-scale. 3.2 kHz resolution bandwidth.

9 Calculated from SINAD and corrected to full scale.

10 Measured using channel AI0. Spectral performance may be degraded using channel AI1.

11 Excludes fixed interleaving spur (Fs/2 spur).

12 To achieve this update rate when using an external sample clock, inject a 3.2 GS/s clock into the REF/CLK IN port and enable 2x interpolation.

13 LabVIEW diagram to SMA output

14 Into a 50 Ω load.

15 Normalized to 10 MHz in dual channel mode and 200 MHz in single channel mode. 2x interpolation and inverse sinc filter enabled.

16 DC, 3.2 GHz, output corrected to 0 dBFS by inverse sinc filter, 2x interpolation, no anti-image filter.

17 2x interpolation, inverse sinc filter enabled, each tone corrected to -6 dBFS by inverse sinc filter.

18 Measured > 50 MHz offset from fundamental. 2x interpolation and inverse sinc filter enabled. Noise spectral density value depends on output tone frequency. See DAC38RF82 datasheet for noise spectral density results at other tone frequencies.

19 2x interpolation. Output corrected to 0 dBFS by inverse sinc filter. 10 kHz resolution bandwidth.

20 Aggressor channel generating a full-scale output into a 50 ohm terminator

21 -6 dBFS, 2x Interpolation, inverse sinc filter enabled, no anti-image filter, normalized to 200 MHz.

22 -6 dBFS, 2x Interpolation, inverse sinc filter enabled, normalized to 200 MHz.

23 Integrated from 3.2 kHz to 20 MHz. Includes the effects of the converter aperture uncertainty and the clock circuitry jitter. Excludes trigger jitter.

24 Integrated from 1 kHz to 30 MHz. Includes the effects of the converter aperture uncertainty, converter PLL circuitry, and the clock circuitry jitter. Excludes trigger jitter.

25 Default clock configuration.

26 The external Reference Clock must be accurate to ±25 ppm.

27 For PCI Express adapter cards with integrated air movers, NI defines the local operational ambient environment to be at the fan inlet. For cards without integrated air movers, NI defines the local operational ambient environment to be 25 mm (1 in.) upstream of the leading edge of the card.
