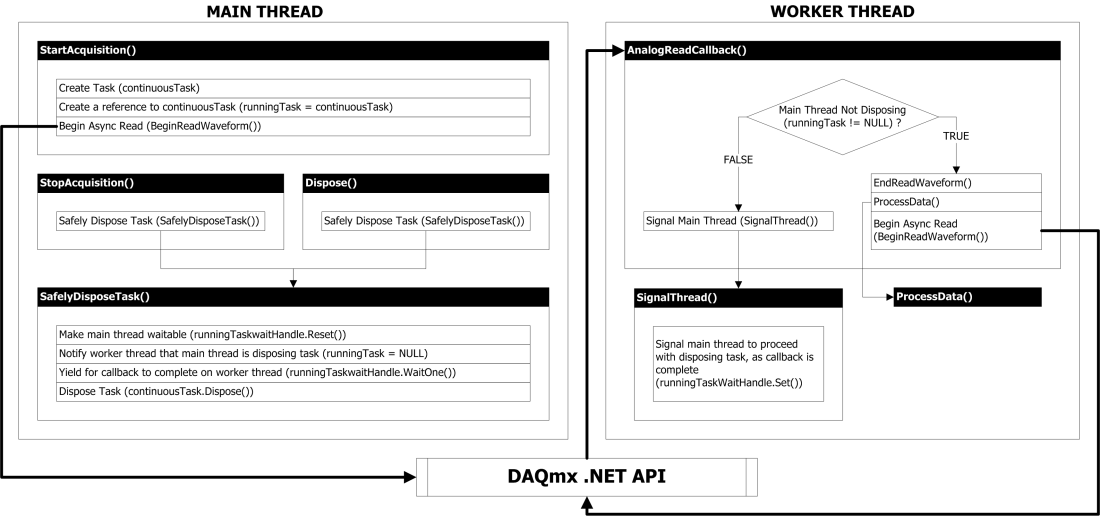

Safe Task Disposal When Using Asynchronous Callbacks

Imports System
Imports System.Threading
Imports NationalInstruments
Imports NationalInstruments.DAQmx

Public Class Program

    Shared Sub Main()
        Dim daqReader As SafeTaskDisposer = New SafeTaskDisposer()
        daqReader.StartAcquisition()
        Console.WriteLine("Press enter key to terminate the task...")
        Console.Read()
        daqReader.Dispose()
    End Sub

End Class

Public Class SafeTaskDisposer
    Implements IDisposable
    Private runningTaskWaitHandle As ManualResetEvent
    ' Used for synchronization while disposing task
    Private runningTask As Task
    Private continuousTask As Task
    Private analogReader As AnalogMultiChannelReader
    Private analogCallback As AsyncCallback
    Private data As AnalogWaveform(Of Double)()

    Public Sub New()
        runningTaskWaitHandle = New ManualResetEvent(True)
        ' Instantiate wait handle
    End Sub

#Region "IDisposable Members"

    ' Dispose method executes on main thread
    Public Sub Dispose() Implements IDisposable.Dispose
        SafelyDisposeTask()
    End Sub

#End Region

    ' StartAcquisition method executes on main thread
    Public Sub StartAcquisition()
        Try
            continuousTask = New Task()
            ' Configure the task and create required channels in task
            continuousTask.AIChannels.CreateVoltageChannel("dev1/ai0:3", "", AITerminalConfiguration.Differential, -10.0, 10.0, AIVoltageUnits.Volts)
            continuousTask.Timing.ConfigureSampleClock("", 1000, SampleClockActiveEdge.Rising, SampleQuantityMode.ContinuousSamples, 1000)
            continuousTask.Control(TaskAction.Verify)
            analogReader = New AnalogMultiChannelReader(continuousTask.Stream)
            analogReader.SynchronizeCallbacks = False
            analogCallback = New AsyncCallback(AddressOf AnalogReadCallback)
            ' Create a reference (runningTask) to the task running (continuousTask)
            runningTask = continuousTask
            analogReader.BeginReadWaveform(Convert.ToInt32(continuousTask.Timing.SamplesPerChannel), analogCallback, continuousTask)
        Catch ex As DaqException
            ' Exception thrown
            runningTask = Nothing
            continuousTask.Dispose()
        End Try
    End Sub

    ' StopAcquisition method executes on main thread
    Public Sub StopAcquisition()
        SafelyDisposeTask()
    End Sub

    ' AnalogReadCallback method executes on
    '   - worker thread when SynchronizeCallback is set to false (current behavior)
    '   - main thread when SynchronizeCallback is set to true
    Private Sub AnalogReadCallback(ByVal ar As IAsyncResult)
        Try
            ' Check to see whether the task is still running
            If runningTask IsNot Nothing AndAlso ReferenceEquals(runningTask, ar.AsyncState) Then
                data = analogReader.EndReadWaveform(ar)

                ' If ProcessData is updating UI components created on the main thread, then
                ' invoke ProcessData on the main thread when SynchronizeCallback is
                ' set to false.
                ProcessData()

                analogReader.BeginReadWaveform(Convert.ToInt32(continuousTask.Timing.SamplesPerChannel), analogCallback, continuousTask)
            Else
                ' Signal waiting thread to proceed
                SignalThread()
            End If
        Catch ex As DaqException
            ' Exception thrown
            runningTask = Nothing
            continuousTask.Dispose()
            ' Signal waiting thread to proceed
            SignalThread()
        End Try

    End Sub

    ' ProcessData method executes on same thread on which AnalogReadCallback executes
    Private Sub ProcessData()
        ' If this method is updating UI components created on the main thread, then invoke
        ' the UI code or this entire method on the main thread when SynchronizeCallback
        ' is set to false.
    End Sub

    ' SafelyDisposeTask method executes on main thread
    Private Sub SafelyDisposeTask()
        If runningTask IsNot Nothing Then
            If Not analogReader.SynchronizeCallbacks Then
                ' When SynchronizeCallback is false, the callback will be executed on
                ' the worker thread. In this case, wait for the pending callback to be
                ' completed before disposing task.


                ' Reset wait handle to wait for callback, which is on the worker thread
                runningTaskWaitHandle.Reset()

                ' Set runningTask to Nothing to indicate the callback, not to initiate
                ' additional reads
                runningTask = Nothing

                ' Wait for pending callback on worker thread.
                '   - If the last operation on runningTaskWaitHandle is Set (in SignalThread),
                '     WaitOne will not wait and proceed to execute the next line of code.
                '   - If the last operation on runningTaskWaitHandle is Reset (in
                '     SafelyDisposeTask), WaitOne will make the main thread wait for the
                '     signal (Set Operation on runningTaskWaitHandle)
                runningTaskWaitHandle.WaitOne()
            Else
                ' When SynchronizeCallback is true, this method and the callback will
                ' be executed on the main thread. In that case, there is no need to wait for pending
                ' callback to be completed before disposing task, because the callack
                ' and this method cannot execute at the same time.


                ' Set runningTask to Nothing to indicate the callback, not to initiate
                ' additional reads
                runningTask = Nothing
            End If
        End If
        ' Safe to dispose task.
        If continuousTask IsNot Nothing Then
            continuousTask.Dispose()
        End If
    End Sub

    ' SignalThread method executes on worker thread
    Private Sub SignalThread()
        ' When SynchronizeCallback is false, the callback will be executed on the worker
        ' thread. In that case, while disposing task, the main thread is waiting on the callback
        ' which is executing on the worker thread to be completed. Signal (call Set
        ' operation on runningTaskWaitHandle) the main thread to proceed
        If Not analogReader.SynchronizeCallbacks Then
            runningTaskWaitHandle.Set()
        End If
    End Sub
End Class

using System;
using System.Threading;
using NationalInstruments;
using NationalInstruments.DAQmx;

public class Program
{
    static void Main(string[] args)
    {
        SafeTaskDisposer daqReader = new SafeTaskDisposer();
        daqReader.StartAcquisition();
        Console.WriteLine("Press Enter key to terminate the task...");
        Console.Read();
        daqReader.Dispose();
    }
}
public class SafeTaskDisposer : IDisposable
{
    private ManualResetEvent runningTaskWaitHandle;
    // Used for synchronization while disposing task
    private Task runningTask;
    private Task continuousTask;
    private AnalogMultiChannelReader analogReader;
    private AsyncCallback analogCallback;
    private AnalogWaveform<double>[] data;

    public SafeTaskDisposer()
    {
        runningTaskWaitHandle = new ManualResetEvent(true);
        // Instantiate wait handle
    }

    #region IDisposable Members

    // Dispose method executes on the main thread
    public void Dispose()
    {
        SafelyDisposeTask();
    }

    #endregion

    // StartAcquisition method executes on the main thread
    public void StartAcquisition()
    {
        try
        {
            continuousTask = new Task();
            // Configure the task and create required channels in task
            continuousTask.AIChannels.CreateVoltageChannel("dev1/ai0:3", "", AITerminalConfiguration.Differential, -10.0, 10.0, AIVoltageUnits.Volts);
            continuousTask.Timing.ConfigureSampleClock("", 1000, SampleClockActiveEdge.Rising, SampleQuantityMode.ContinuousSamples, 1000);
            continuousTask.Control(TaskAction.Verify);
            analogReader = new AnalogMultiChannelReader(continuousTask.Stream);
            analogReader.SynchronizeCallbacks = false;
            analogCallback = new AsyncCallback(AnalogReadCallback);
            // Create a reference (runningTask) to the task running (continuousTask)
            runningTask = continuousTask;
            analogReader.BeginReadWaveform(Convert.ToInt32(continuousTask.Timing.SamplesPerChannel), analogCallback, continuousTask);
        }
        catch (DaqException ex)
        {
            // Exception thrown
            runningTask = null;
            continuousTask.Dispose();
        }
    }

    // StopAcquisition method executes on the main thread
    public void StopAcquisition()
    {
        SafelyDisposeTask();
    }

    // AnalogReadCallback method executes on
    //   - worker thread when SynchronizeCallback is set to false (current behavior)
    //   - main thread when SynchronizeCallback is set to true
    private void AnalogReadCallback(IAsyncResult ar)
    {
        try
        {
            // Check to see whether the task is still running
            if (runningTask != null && runningTask == ar.AsyncState)
            {
                data = analogReader.EndReadWaveform(ar);

                // If ProcessData is updating UI components created on the main thread, then
                // invoke ProcessData on the main thread when SynchronizeCallback is
                // set to false.
                ProcessData();

                analogReader.BeginReadWaveform(Convert.ToInt32(continuousTask.Timing.SamplesPerChannel), analogCallback, continuousTask);
            }
            else
            {
                // Signal waiting thread to proceed
                SignalThread();

            }
        }
        catch (DaqException ex)
        {
            // Exception thrown
            runningTask = null;
            continuousTask.Dispose();
            // Signal waiting thread to proceed
            SignalThread();
        }
    }

    // ProcessData method executes on same thread on which AnalogReadCallback executes
    private void ProcessData()
    {
        // If this method is updating UI components created on the main thread, then invoke
        // the UI code or this entire method on the main thread when SynchronizeCallback
        // is set to false.
    }

    // SafelyDisposeTask method executes on the main thread
    private void SafelyDisposeTask()
    {
        if (runningTask != null)
        {
            if (!analogReader.SynchronizeCallbacks)
            {
                // When SynchronizeCallback is false, the callback will be executed on
                // the worker thread. In that case, wait for the pending callback to be
                // completed before disposing task.

                // Reset wait handle to wait for callback, which is on the worker thread
                runningTaskWaitHandle.Reset();

                // Set runningTask to null to indicate the callback, not to initiate
                // additional reads
                runningTask = null;

                // Wait for pending callback on the worker thread.
                //   - If the last operation on runningTaskWaitHandle is Set (in SignalThread),
                //     WaitOne will not wait and proceed to execute the next line of code.
                //   - If the last operation on runningTaskWaitHandle is Reset (in
                //     SafelyDisposeTask), WaitOne will make the main thread wait for the signal
                //     (Set Operation on runningTaskWaitHandle)

                runningTaskWaitHandle.WaitOne();
            }
            else
            {
                // When SynchronizeCallback is true, this method and the callback will
                // be executed on the main thread. In that case, there is no need to wait for pending
                // callback to be completed before disposing task, because the callback
                // and this method cannot execute at the same time.

                // Set runningTask to null to indicate the callback, not to initiate
                // additional reads
                runningTask = null;
            }
        }
        // Safe to dispose task
        if (continuousTask != null)
        {
            continuousTask.Dispose();
        }
    }

    // SignalThread method executes on the worker thread
    private void SignalThread()
    {
        // When SynchronizeCallback is false, the callback will be executed on the worker
        // thread. In that case, while disposing task, the main thread is waiting on the callback
        // which is executing on the worker thread to be completed. Signal (call Set
        // operation on runningTaskWaitHandle) the main thread to proceed
        if (!analogReader.SynchronizeCallbacks)
        {
            runningTaskWaitHandle.Set();
        }
    }
}
